LokoCar Oil Catch Can Kit 10AN Breather Tank with 10FT CPE Hose Fittings — Open-Box, 19% Off

The baffled internal design and breather filter separate oil mist from crankcase vapor so less oil reaches your intake and throttle body

Hose rated 500 PSI working and 2000 PSI burst from -40F to 257F, ID 0.56 inch and OD 0.78 inch, minimum bend radius 4 inch

Kit includes the catch can with welded mounting brackets, breather filter, 10FT 10AN hose, 6 swivel hose end fittings and 2 clamps

6061-T6 aluminum with TIG welded seams and an anodized finish. The hose has a CPE core with stainless steel mesh and nylon braid

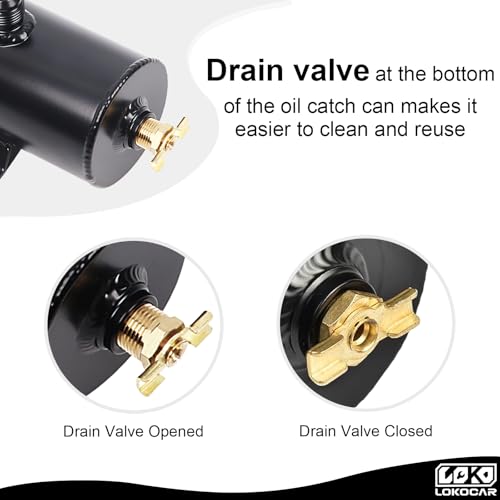

750ml can with a 3/8 NPT drain valve and o-ring seals. Check your mounting space and port size before ordering. 6-month warranty

LokoCar 10AN Oil Catch Can Breather Tank Kit with 10FT CPE Fuel Line A baffled oil catch can that keeps oil out of your intake. Crankcase vapor carries oil mist that coats the intake, throttle body and valves. This kit separates the oil inside a 750ml aluminum can, so your intake stays cleaner and your engine breathes better. What is included One 750ml oil catch can with a breather filter and welded mounting brackets, one bottom drain valve with 3/8 NPT thread, one 10FT 10AN fuel hose, six 10AN swivel hose end fittings (2 straight, 2 x 45 degree, 2 x 90 degree) and two hose separator clamps. All parts are packed together as one set. How the can is built The can body is 6061-T6 aluminum, TIG welded and anodized, with two 10AN threaded ports for the hose fittings. A baffle inside slows the vapor so oil drops out, and the threaded breather filter catches the rest of the oil mist. The bottom drain valve empties the can without removing it, and every port uses an o-ring seal. Hose and fittings The 10AN hose has three layers: a CPE core, a stainless steel wire mesh layer and a nylon braided cover. Hose rated 500 PSI working and 2000 PSI burst, operating temperature -40°F to 257°F, ID 0.56 inch, OD 0.78 inch, minimum bend radius 4 inch. Can ports use 10AN 7/8-14 UNF thread and the drain valve uses 3/8 NPT. The six hose ends are swivel fittings that rotate freely for alignment. Note: this hose is not compatible with E85, methanol or flex fuel. Use it with gasoline, diesel, engine oil, transmission fluid or hydraulic fluid. Fitting and installation Universal for most cars, trucks, turbo builds and LS swap projects, but you need room under the hood for routing. Measure your mounting spot and port size before ordering. Lubricate the threads and tighten with a wrench without overtightening. What you get from LokoCar Every kit is checked before shipping and covered by a 6-month LokoCar warranty. If anything is missing, message us and we will resolve it quickly.
