LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module

The LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics.

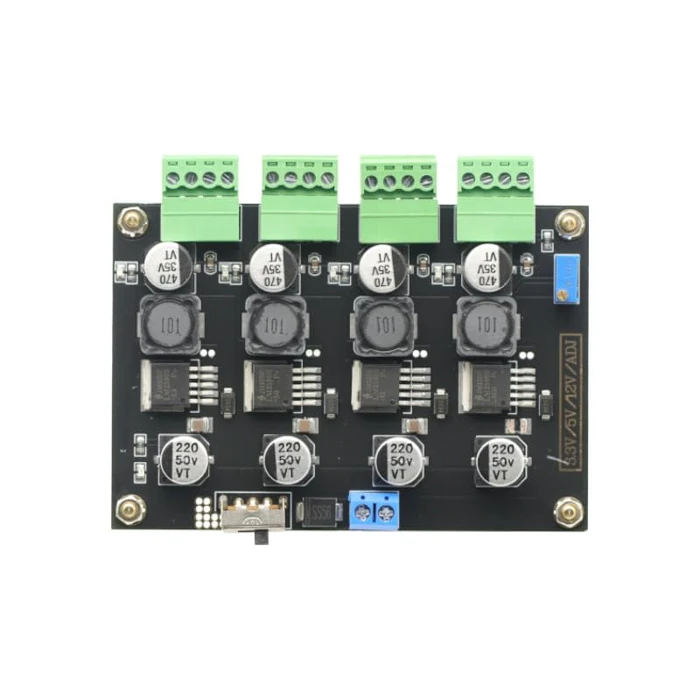

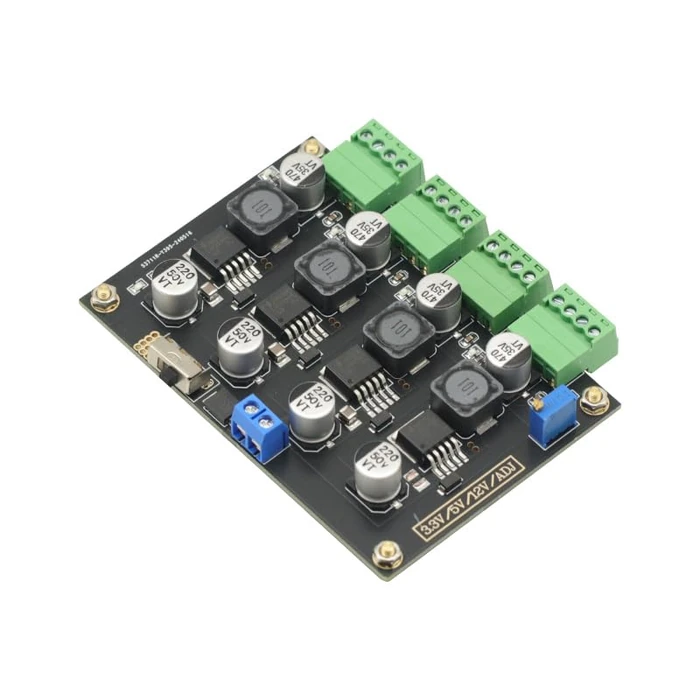

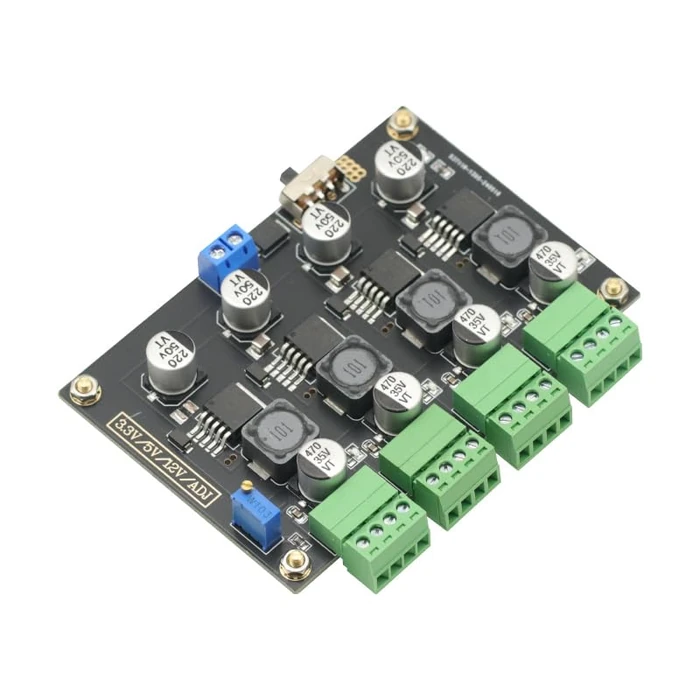

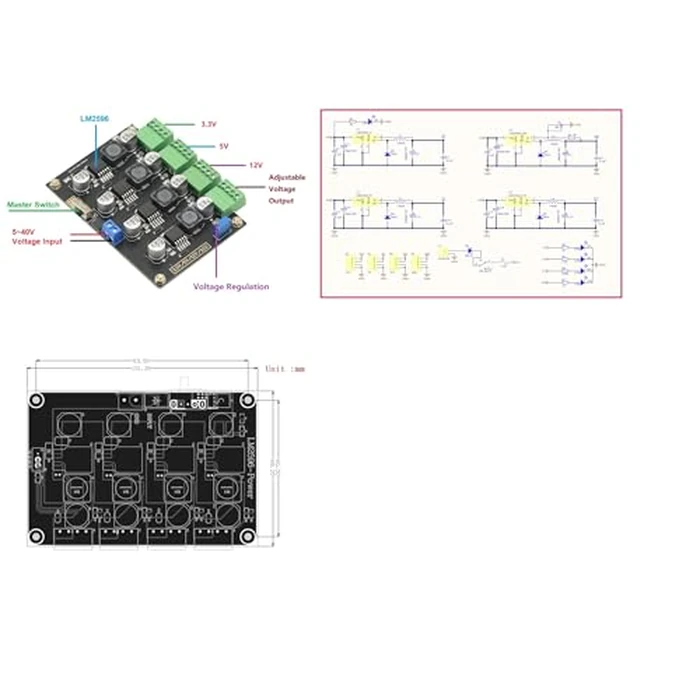

This module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time

The module is laid out and wired in strict accordance with the design specifications of the power circuit

The material is generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors to ensure stable output voltage

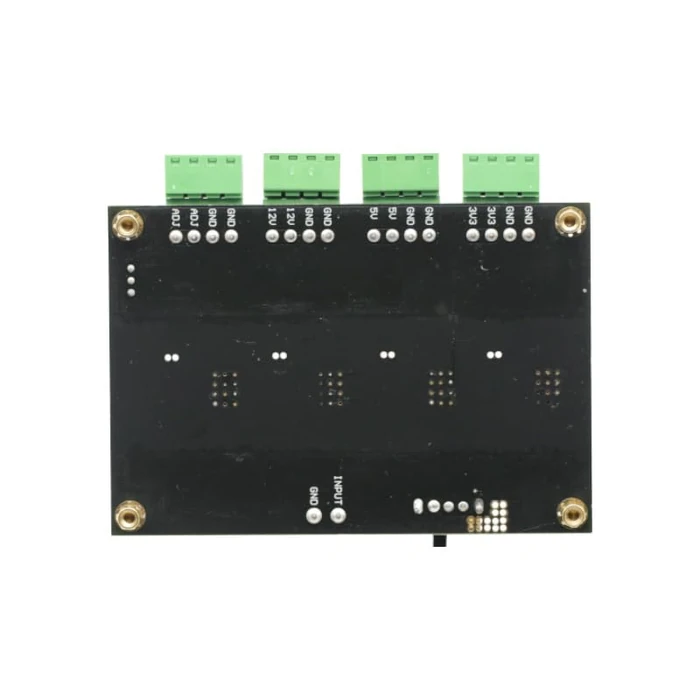

The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip

Suitable for student learning competitions and power needs in corporate or personal project development.

Product parameters:

Size: 100*68mm

Module model: LM2596 multi-channel power supply

Module type: switching power supply

Input voltage: 5V-40V

Input voltage: multiple 3.3V, 5V, 12V, ADJ

Output current: 3A (MAX), the maximum single-channel current of the module is 3A, and the total current does not exceed 5A

Conversion efficiency: 85%

Output power: 9.9W 3.3V

15W 5V

36W 12V

36W ADJ

Static power consumption: 26mA

Switching frequency: 150KHz

Module Enable: None

Module protection: reverse polarity protection

Module features: low noise, low ripple; with input and output power supply; indicator light; with positioning hole

Module application: industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation
