LINOVISION Industrial 8-Port EOC & POE Switch with 8pcs EOC Transmitters — Open-Box, 20% Off

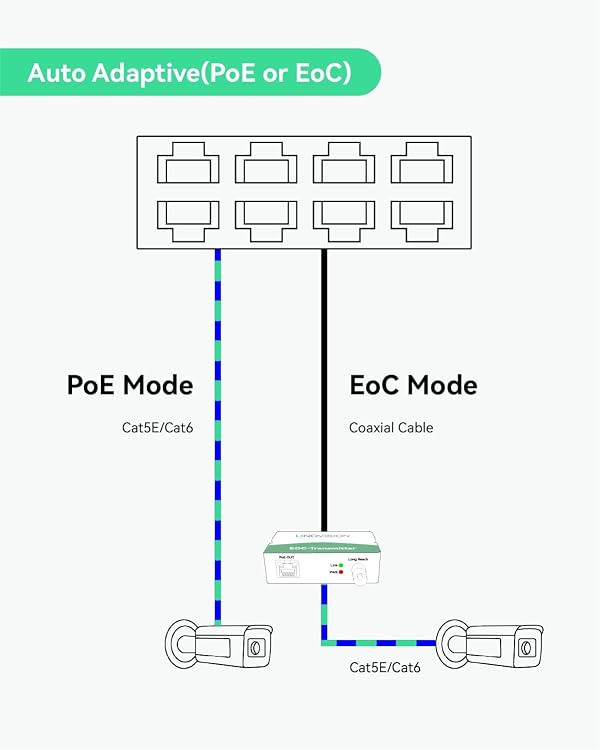

【8-PORT POE&EOC HYBRID SWITCH】 Provides 8 PoE ports with built-in EOC Receiver. Each port is auto-adaptive to PoE mode or EoC(Ethernet over Coax) mode and you can use it flexibly. For example, you can use 4 ports in EoC mode and another 4 ports in PoE mode

【POE OVER COAX】 Transmits PoE power and data over the coaxial cable when bundling with EOC Transmitter, max 3,300ft distance. Suitable for upgrading analog camera system to IP surveillance system without replacing existing coaxial cables

【LONG REACH POE】 Extends POE Transmission through regular network cables or twisted pair cables over 2,600ft when bundling with EOC Transmitter. Suitable for monitoring scenarios such as underwater inspection system, seaside video monitoring, dam inspection system, mining facilities, underground pipe inspection systems, etc.

【SIMPLIFIED WIRING】 Instead of using 6 pairs of EOC Converters & 1 PoE switch, one EOC Switch can provide the same functions. It provides more-simplified cabling and more-stable performance. While upgrading your analog surveillance system you can add extra IP cameras with UTP (Cat5E/Cat6) cables

【60W Hi-POE OUTPUT】 Provides 8 10M/100Mbps PoE output ports. Port 1 and Port 5 comply with the Hi-PoE standard, Max. output power 60W. Port 2,3,4,6,7,8 ≤ 30W(IEEE802.3at). The total PoE power budget is 120W

【REALIZR ePOE CAMERA LONG DISTANCE TRANSMISSION】The ePoE camera has an integrated EOC Transmitter. It can be used with the EOC-Switch08 to transmit power and data over Coaxial Cable or Ethernet cables (Cat5E/Cat6) up to 2,624 ft (800 meters). If Coaxial Cable is required, the camera can be used in conjunction with EOC-Adapters.

【IMPORTANT NOTIFICATION】 For multiple PoE over coax cables application in one system, it is highly recommended to use EOC-Switch KIT to avoid potential signal interference.

【PACKAGE INCLUDED】 Included 1×EOC-Switch08 with power adapter, 8×EOC Transmitters, 8×EOC Adapters and 1×User Manual

【INDUSTRIAL DESIGN】 Support 2 channel DC48V-57V redundant power inputs. Industrial wide temperature design from -22 °F to +149 °F.DIN rail mount

This is an innovative 8-Port EOC & POE Hybrid Switch, featuring built-in 8 EOC-Receivers. Working with EOC-Transmitter or ePOE IP cameras, it can transmit PoE power and data up to 3,300ft over Cat5E network cable or coaxial cable (EOC-Adapter is required).It can also be used as regular POE switch to work with standard POE device (IP camera, VoIP phone, etc.)
