lilila-ree for Corsair 90° Angled 12VHPWR Cable – Dual 8 Pin to 16 Pin 12V-2x6 PCIe 5.0 GPU Power Cord, 16AWG 600W, Type B (4-Pin on Top Design) for RTX 5090/5080/4090 Type3/Type 4 Modular PSUs — Open-Box, 18% Off

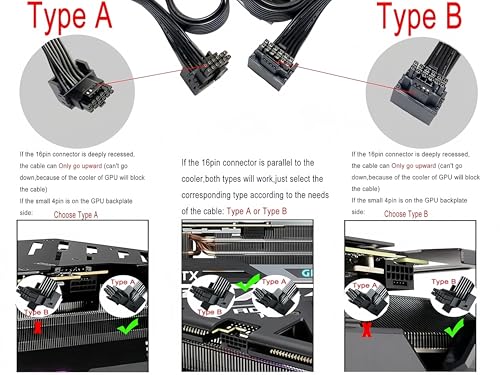

🔹 CORSAIR TYPE B CONFIGURATION – 4-PIN ON TOP DESIGN This cable features the official Corsair Type B configuration, with the 4-pin sense wires positioned on the top side of the connector (closer to the GPU backplate) . This design is specifically optimized for graphics cards with components or capacitors below the power connector, ensuring full insertion without interference. Available in two versions—Type A (4-Pin on Bottom) and Type B (4-Pin on Top)—giving you the freedom to route the cable above or below your graphics card for the perfect fit in your build .

🔹 90° ANGLED CONNECTOR – PREVENTS SHARP BENDS The factory-molded 90° angled 12V-2x6 connector eliminates the need to bend cables near the GPU port—the #1 cause of connector failure . Standard straight cables often require sharp bends that press against glass side panels; our angled design routes the cable cleanly upward, reducing stress on both the GPU port and your case. It is recommended to maintain at least 35mm of straight cable before any bend .

🔹 600W POWER DELIVERY – RTX 50 & 40 SERIES READY Built to power the most demanding graphics cards. This cable delivers up to 600W of stable power through two PCIe 8-pin inputs on your Corsair PSU. ✅ Fully compatible with NVIDIA GeForce RTX 50 Series (5090/5080/5070 Ti) and RTX 40 Series (4090/4080/4070 Ti) . Supports both 12VHPWR and the updated 12V-2x6 GPU connector standards—the cable works with both, as the difference lies in the GPU-side socket, not the cable itself .

🔹 PREMIUM 16AWG CONSTRUCTION – HIGH THERMAL ENDURANCE Built with high-quality 16AWG tinned copper wire, capable of carrying up to 55A of current with 105°C temperature resistance . Delivers stable power with minimal voltage drop. The plug terminals feature alloy copper with tin plating for superior conductivity and corrosion resistance. Each cable is factory-tested for reliability under load.

🔹 EXACT FIT FOR CORSAIR TYPE 3 / TYPE 4 MODULAR PSUs Engineered specifically for Corsair Type 3 and Type 4 power supplies . Compatible with RM, RMx, RMi, RMe, HX, HXi, AX, AXi, SF, TX-M, CX-M series. ⚠️ NOT compatible with other PSU brands (EVGA, Seasonic, Lian Li, etc.) or Corsair AX Gold/HX Bronze series—using with incompatible PSUs may cause permanent damage .

🔹 OPTIMAL CABLE LENGTH – 650MM (25.6 INCHES) Total length of 650mm (25.6 inches) provides ample reach for routing behind the motherboard tray or through cable management channels . Includes a reusable cable tie for clean organization.

🔹 ⚠️ CRITICAL INSTALLATION SAFETY WARNINGS The #1 cause of 12VHPWR/12V-2x6 connector failure is incomplete insertion and bending within 35mm of the connector . When connecting to your GPU: Push the connector straight and firmly into the GPU port until you hear a CLICK Verify that no gap exists between the connector housing and GPU socket Do not bend the cable within 35mm (1.4 inches) of the connector—maintain a straight approach as required by PCI-SIG specifications

【90 Degree 16Pin (12+4) Pin Adapter 】90 Degree Angle allows it have a suitable extension direction, which can avoid the wear of the cable and the input port of GPU, extend the service life. it also increases more space between your GPU and your side panel. This enables installation of super wide cards in more narrow chassis.
