KOMSHINE KLT-12E Optic Fiber Tester Toolkit Includes Fiber Optic Power Meter OPM+ Optical Light Source OLS+Fault Locator V-F-L+ Cleaning Platform + Jump Cables FTTH Loss Test Kit

---- KLT-12E is suitable for fiber loss testing, fiber end face cleaning, fiber break point detection and other fields and It contains all necessary tools for testing, cleaning, inspection, etc. ---- KLT-12E includes Optical power meter KPM-11M -70~+10dbm + Optical light source KLT-25-Single Mode 1310 1550nm + Fault lo-cator KFL-11M 5-8km ---- 1pc Fiber optical cleaning platform FOCP + 2pcs Cleaning bottles + 3pcs Coupler plastic and 3pcs Jump Cables SC/PC-SC/PC; FC/PC-FC/PC; FC/PC-SC/PC ---- Rainproof, drop-proof, easy to carry, large capacity and small size, and can adapt to all indoor and outdoor operating environments. ---- Suitable for fiber optic testing, cleaning, break point detection and other fields. Komshine Basic optic fiber Loss Tester KLT-12E Optical Fiber Loss Test Kit with Optical Power Meter / Optical Light Source / V-F-L


This Toolkit include:


1x KomShine Black Fashion Carrying Bag

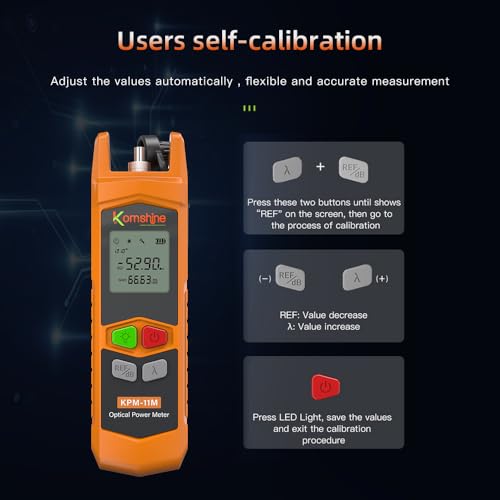

1x Optical Power Meter KPM-11m

Features:

Pocketsize, large easy to read LCD display, easy to use

Long battery life with 2 x AAA alkaline


1x Optical Light Source KLS-25m

KLS-25 optical light source can provide 1310/1550nm output wavelengths to meet specific requirements. Together with the KPM-25M optical power meter,it is a perfect solution for the fiber optic network characterization.

Key Features :

Pocketsize, large easy to read LCD display, easy to use
1310/1550nm
CW, 2Hz modulation output at 650nm,and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
Long battery life with 2 x AAA alkaline


1x Fault Locator KFL-M Highlights:

2.5mm universal connector for FC, ST and SC
Portable and rugged, easy to use
Operates either in CW or Pulsed
Constant output power
Long battery life (up to 65 hours)
Dust-proof & Crash-proof and design for head




1x Precision Fiber Optic Cleaning Cubes

4x Adapters

4x Drop Cable 1x Fiber Optic Cleaning tools Komshine FOCP
Spec: Item Type: Optic Fiber Test Kit
Model: KLT-15D

Material: ABS
KPM-11M:

Wavelength Range: 800-1700nm
Power Measurement range: -70 ~ +10dBm, -50 ~ +26dBm.
Standard Wavelength: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm.
Battery: 2 x AAA battery, shipped without battery.
KFL-11M:

Test Distance: 8-10km
Wavelength Range: 650nm
Modulation Frequency: CW/2Hz
Battery: 2 x AAA battery, shipped without battery.
KLS-25M:

Wavelength: 1310+1550nm
Output Power: -5dB
Optical Connector: SC and 2.5mm universal.
Modulation Frequency: CW, 270Hz, 1KHz, 2KHz
Output Stability: ± 0.05dB/15min, ± 0.1dB/8h.
Battery: 2 x AAA battery, shipped without battery.
KFM-200:
Magnification Rate: 200X Light Source: White LED Adapter Interface: 1.25mm and 2.5mm universal adapters Interface Type: SC, LC, FC, ST. Battery Type: 3 x AAA battery, shipped without battery. How to Use: Take out the product and use it according to the electronic user manual. packing list: 1 x Optic Fiber Power Meter 1 x Stable Light Source 1 x Red Light Pen 1 x Cleaning Platform 1 x Large Bottle 1 x Small
