KBIC-120 (9429) DC Drives Chassis

Name: KBIC-120 (9429) DC Drives Chassis
Brand: KB ELECTRONICS
SKU: awhd-us-b007zqlj3o
Price: 69.99 USD
Availability: InStock

Brand: KB ELECTRONICS

Condition: Used - Like New

$69⁹⁹

$178²³

-61% Save $108²⁴

Updated: 5 hours 24 mins ago

Buy at Amazon.com

Description

• KBIC-120 KB Electronics 115 VAC, thru 0

• 5 HP, 90 VDC ARM (9429) Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed; purchased separately Plug-in Line Fuse Optional Optional fuse mounting kit

• Plug-in Armature Fuses purchased separately The KB Electronics KBIC Controls PM, Shunt and AC/DC motors over a range of 1/100 - 3 HP with only a few models

• All models can be used on a wide range of motor horsepower by inserting KBs exclusive Plug-In Horsepower Resistor

• Speed range is 50:1 with load regulation of 1%

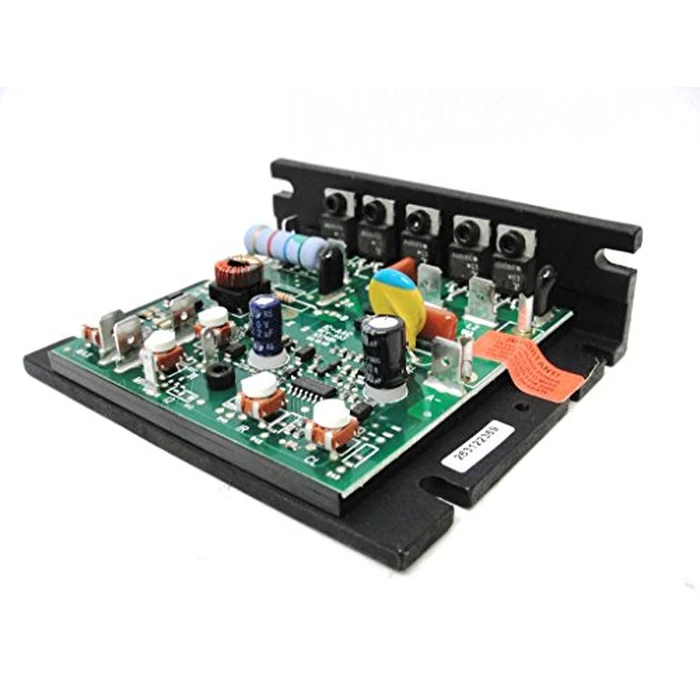

THIS DRIVE WILL NOT OPERATE UNLESS A PLUG-IN HORSEPOWER RESISTOR THAT MATCHES YOUR MOTOR'S HORSEPOWER AND VOLTAGE IS INSTALLED. Horsepower resistors are sold separately. The KBIC-120 chassis-mounted DC drive is a 115 VAC rated 9 Amps RMS @ 45C. The control is designed for 90 VDC PM, Shunt and AC/DC motors. It will control motors between 1/100-1/2 HP (1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). This control is available worldwide from stocking KB distributors. UL, CSA, CE. Patented.

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b007zqlj3o
Model:: 9429
Country:: US
ASIN:: B007ZQLJ3O
UPC:: 049008448582
