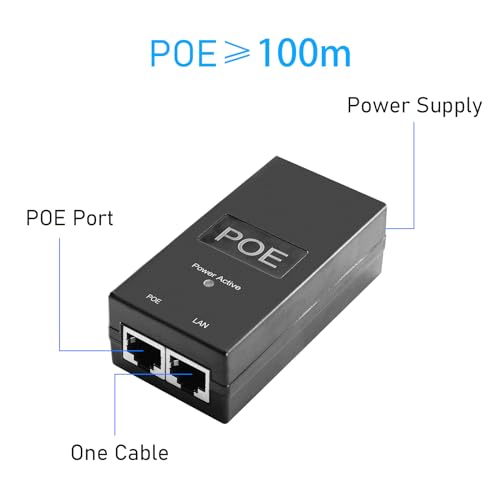

JideTech POE Injector 48V 24V, Iniettore Power Over Ethernet 2 Port RJ45 10/100Mbps IEEE802.3i 10 Base-T,IEEE802.3i 100 Base-TX, IEEE802.3X,Plug & Play for PoE IP Camera

Support 10/100M adaptive transmission rate, PoE power supply distance 100 meters which the maximum output power of the port is 24W. Plug and play, without any configuration and protocol conversion, the port contains a normal data port and a PoE port. Each port supports MDI/MDIX auto-flipping and auto-negotiation. EEE energy-efficient design, ultra-low power consumption. Automatic identification of powered devices, power supply on demand.

Product Description:

Data port: Data port connected to the switch；

POE port: 1 POE port output, connected to POE powered device ；

220VAC Power Inputs: Provide Power Sources for POE；

Ports Compliance with the standard: IEEE802.3i 10 BASE-T,IEEE802.3i 100 BASE-TX, IEEE802.3x flow control 24W per port；

 POE power: 4/5+, 7/8-pairs GB unshielded Category 5 twisted-pair or higher cable Forwarding is not stored Power input: 100-240VAC, 47-63Hz The power available power is greater than 84% ;

POE power output: voltage 48V±5%, current 0~0.33A, maximum 24W Port speed: 10/100Mbps；

LED indicator: Power indicator；

AC interface: Plum 3 pin, AC-031B (DB-6)；

Material: PPO, PC, PC+ABS, or equivalent Ambient;

Temperature: Operating temperature: -20 to +55°C;

Storage temperature: -20 to +60°C Environmental；Humidity: 20~90% non-condensing;

Size: 100*53*35mm (L*W*H);

Package including: 2xPower cord ; 1xPOE Injector PLEASE;

NOTE: The POE power supply itself does not have a data switch function and needs to be used in conjunction with a network switch.Combine switch network data with power supply,Through network cables that provide power and data transmission to remote power receiving terminals which get rid of power layout and network formation.
