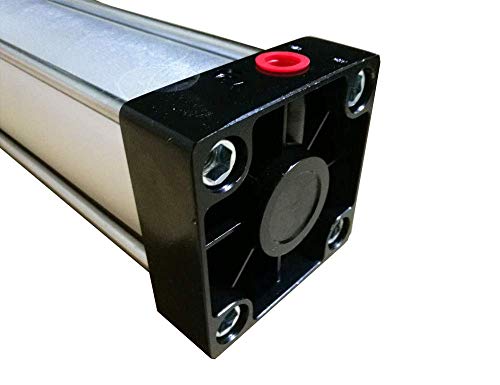

INTBUYING Air Cylinder Pneumatic Buffer Standard Cylinder Aluminum Alloy Magnetic Rod Dual Action Single Rod- SC 80 x 1000 PT Bore:3" Stroke:40" — Open-Box, 13% Off

Main parameter: Model: SC 80 x 1000; Fluid: Air; Action Type: Double Acting; Rod Type: Single Rod; Piston speed: 50-800 mm/S; Ambient and fluid temperature:-20~80°C; MAX Pressure: 0.15-0.7 MPa; Bore: 80 mm/ 3"; Stroke: 1000 mm/ 40"; Piston port size: M20X1.5; Piston speed: 50-800 mm/S. Ambient and fluid temperature: -20~80°C Qualified material: The air cylinder is made of high quality aluminum alloy, high strength, no distortion, corrosion resistance, long service life, more durable. High temperature resistance, good compatibility with parts, no corrosion inside, significantly extending cylinder life Non-rusting piston rod: The piston rod is chrome-plated, with high hardness, rust and corrosion resistance, and enhanced piston and rod strength. Piston conentricity reached ±2 wire ultra high standard, can repeatedly slip 300W times Stablity enhanced: The cylinder uses copper sleeve, greatly improve the stability of the cylinder. With thicker base, the air cylinder has strong impact resistance, more stable when working, more safe when operating Concord sealing ring: With excellent sealing ring, the air cylinder is of high efficiency to prevent piston leakage, improving sealing performance Parameters:
Model：SC 80 x 1000
Fluid: Air
Action Type: Double Acting
Rod Type: Single Rod
Piston speed:50-800mm/S
Ambient and fluid temperature:-20~80°C
MAX Pressure:0.15-0.7MPa
Bore: 80mm/ 3"
Stroke: 1000mm/ 40"
Piston port size: M20X1.5
Package Content: 1 x Air Cylinder
Item included(027251):
1* Pneumatic Standard Cylinder SC 80 x 1000
