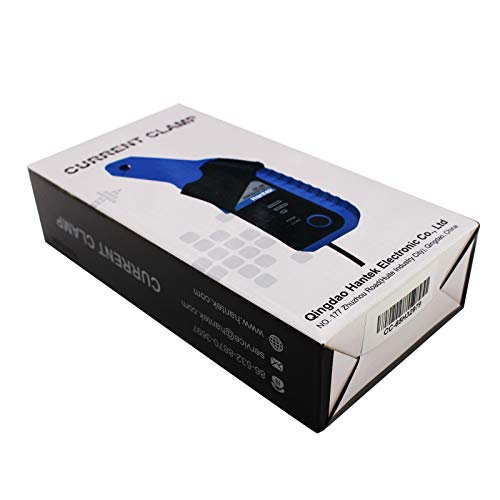

Hantek CC-65 AC/DC Current Clamp Meter Transducer for Digital Multimeter Oscilloscope with BNC Type Connector — Open-Box, 14% Off

Hantek amp clamp AC/DC frequency range: Up to 20 kHz;

hantek cc65 Effective Measurement Range: 20mA to 65A DC;

The oscilloscope current probe is with Accurate circuit measurement and suitable for DSO;

Hantek CC-65 amp clamp is Friendly in use: turn on, clamp it over a conductor, and get a reading;

The current probe is with Output: BNC connector;

The Hantek CC-65 current clamp allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. If connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms accuratly. AC/DC frequency range: up to 20KHz. Effective measurement range: 20mA to 65A DC. INTRODUCTION When measuring the AC/DC Current with the Current Clamp, a multimeter or scope can directly measure the current up to 65 A , with a frequency up to 20KHz. In this method, there is no need to break a circuit or to affect the isolation to measure the current. The Current Clamp is not only available for the detection or monitor of the possibly existing creepage, but for the measurement with little gap using its extended jaws. However, it is necessary to turn the zero adjustment knobs on the clamp until the multimeter or scope reads zero. APPLICATION PROCEDURE 1. When connected with any multi-meter whose input impedance is 10k ohms minimum,insert the black banana plug into the COM jack and the red banana plug into the V-Ω jack.When connected with a scope,connect the BNC connector of the clamp to a scope BNC connector. 2. Set the power switch form “Off” to “ON” position, that is to set the multimeter range to 1mV/10mA or 1mV/100mA. Then, the green LED will be lighting, indicating that the clamp is switched on.. 3. when the current is not greater than 2 ampere ,please set the current clamp range to 1mV/10mA and set the multi-meter range to 200mV AC or 200 mV DC, which depends on the type of the current. 4. Before measuring the DC current, it is needed to turn the zero adjustment knobs on the clamp until the multimeter reads zero. That means pushing down the zero adjustment knobs on the clamp until the multimeter reads zero. Then let go hold of the zero adjustment knobs.When using a scope,set DC
