GCSOAR MPPT Solar Charge Controller 100A 12V 24V 48V Auto Max PV 200V Solar Panel Charger + WiFi Adatper APP Remote Monitor Common Negative Regulator for Gel AGM SEL FLD LiFePO4 Lithium — Open-Box, 17% Off

Name: GCSOAR MPPT Solar Charge Controller 100A 12V 24V 48V Auto Max PV 200V Solar Panel Charger + WiFi Adatper APP Remote Monitor Common Negative Regulator for Gel AGM SEL FLD LiFePO4 Lithium
Brand: GCSOAR
SKU: awhd-us-b0gsfx296d
Price: 181.76 USD
Availability: InStock

Brand: GCSOAR

Condition: Used - Mint

$181⁷⁶

$219⁹⁹

-17% Save $38²³

Updated: 5 days ago

Buy at Amazon.com

Description

【12/24/48V Multiple Battery Adaptation】GCSOAR 100A MPPT Solar Charge Controller Max PV 200V, Max input solar panels power 1300W for 12V battery or 2600W for 24V battery or 5200W for 48V battery, Compatible with Sealed Lead Acid, GEL, Flooded, LiFePO4, Li(NiCoMn)O2 Lithium Battery, auto detects 12V or 24V or 48V DC system voltage, Especially design user mode to custom battery parameter manually to solve the voltage matching common issue of multiple battery 【Real Time APP Remote Monitor】You can monitor solar system consumption or custom parameter directly, communication port allows the mppt controller to communicate with the WiFi adapter(CM-W01) or Bluetooth adapter(CM-B01) which will enable you to monitor the status and productivity of your solar sytem through the App(iConnect) anytime anywhere ( Thanks for customers valuable suggestions. We have fixed the APP bug, and prepared a note on precautions to be taken when using the WiFi adapter ) 【4-Stage Safely Charging】 Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life 【Extremely Safe】CE, FCC, IEC, UL and RoHS certificate. The 100A MPPT charge controller with cooling fan and insulated shell prevents you from accident and keep your solar system in safe in high temperature. Full system protection from program safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current 【Innovative MPPT Design, up to 99% efficiency】 MPPT technology is with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day. Even when the battery is overdischarged(at 0 volt), the controller can activate it with small current and bring it to life 【Easy to Set up and Understand】LCD screen display system operation information, customizable parameters, and error codes, you can understand the charging status and set the parameter better and easier with the display. Easy to mount design for convenient set up. 5 load modes for connected DC appliances better load management , make it easy to use your device GCSOAR 100A MPPT Solar Charge Controller 12V/24V/48V Max PV 200V Solar Panel Charger Regulator LCD display Opitonal APP remote monitor for Gel AGM Sealed Flooded Lithium LiFePO4
Technical Data:
Model: TD41020F+WiFi adapter
Rated charge current :100Amp
Nominal system voltage:12V/24V/48V DC auto
Max. PV open circuit voltage: 200V
Max. PV input power: 1300W for 12V battery or 2600W for 24V battery or 5200W for 48V battery
Battery type: Sealed, GEL, AGM, Flooded, LiFePO4, Li[NiCoMn]O2, User-defined
Battery voltage range: 8V~68V
Cooling method: Fan Cooling
Grounding: Common negative
Communication: RS485 port via WiFi adapter(CM-W01) or Bluetooth adapter(CM-B01) by APP remote monitor
LCD backlight time: 15s(Default)
Working environment temperature : -20°C ~ +50°C/-4°F -- 122°F
Maximum wire size :25mm2/4AWG

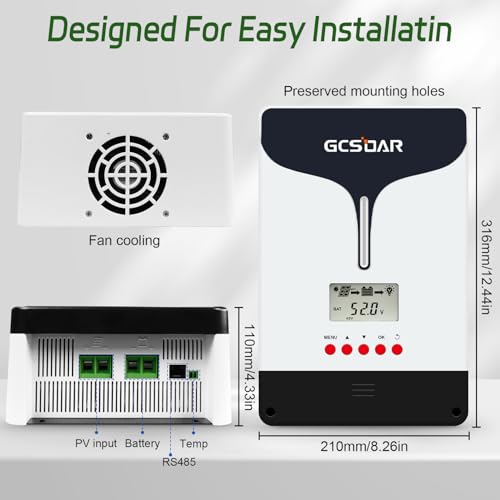

Dimension:316*210*110mm
weight:3.9 KG
Package List:
1 X MPPT Solar Charge Controller 100A
1 X Temp senosr cable
1 X Manual (English)
1 X WiFi adapter(CM-W01)

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b0gsfx296d
Model:: TD41020F(CM-W01)
Country:: US
ASIN:: B0GSFX296D
