FlyFishRC Fast Positioning M10QMC-5-8-83L G-P-S Module for RC Long Range FPV Racing Drone Quad Airplane
Brand: FlyFishRC
Condition: Used - Good
$1501
$1951
-24% Save $450
Updated: Yesterday
Description
• 72 channel 10 Hz Refresh rate
• Built-in TCXO crystal and farad capacitor for faster hot start
• High sensitivity 18x18mm G-P-S patch antenna
• SH1.0-6Pin terminal design, no soldering required
• QMC5-8-83L Magnetometer chip，Precise pointing
The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allows subtle altitude changes to be skipped for more stability. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.
Specifications
GPS module: FlyFishRC M10QMC-5883L GPS Module
Frequencies: 72 channel
Refresh Rate: 10 Hz
Compass module: QMC5883L
B-a-u-d Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162d-B-m, Capture: -160d-B-m，Cold Start: -148d-B-m
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Cold start: <24s
Hot start: <2s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Input Voltage: 3.3V-5V，current 25mA
Output Connector: SH1.0-6P
Weight: 8.8g

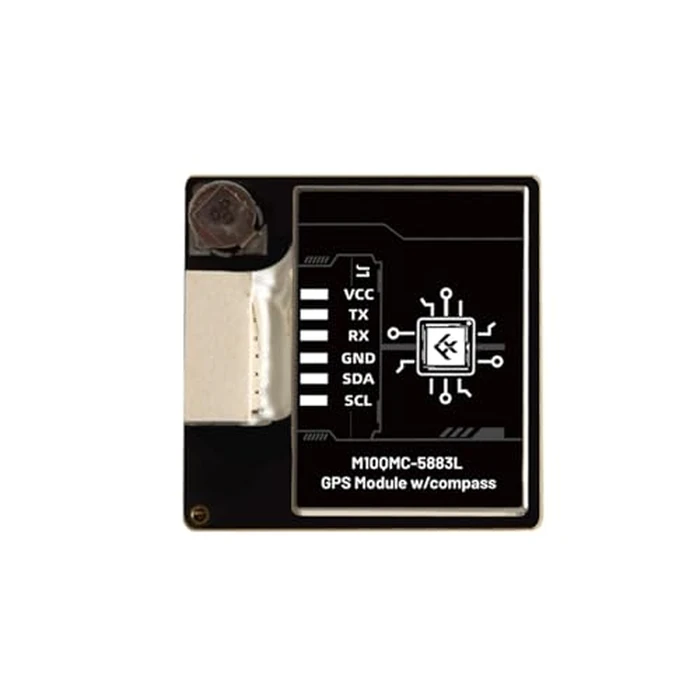

GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
G-P-S patch an-t-enna size: 18 x 18 mm

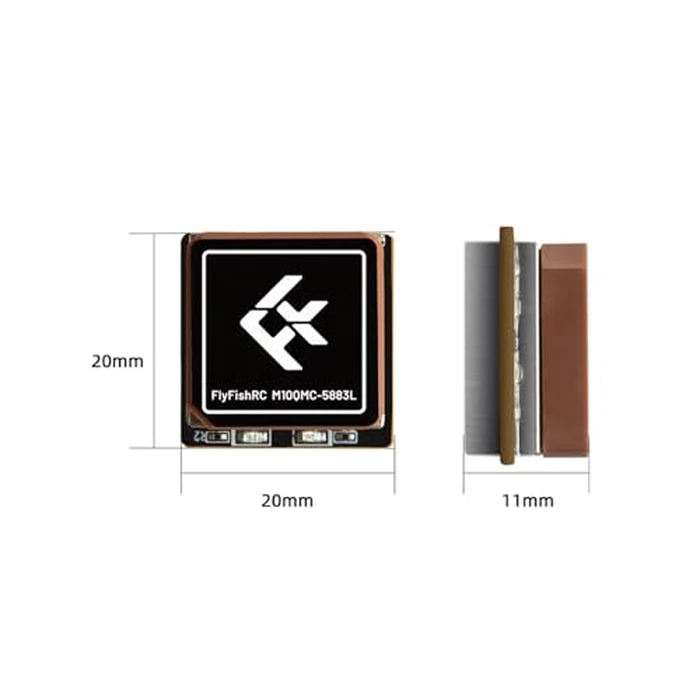

Total dimensions：20 x 20 x 11 mm
Features:
- 72 channel 10 Hz Refresh rate
- Built-in TCXO crystal and farad capacitor for faster hot start
- High sensitivity 18x18mm GPS patch antenna
- SH1.0-6Pin terminal design, no soldering required.
- Q-M-C-5-8-83L Magnetometer chip，Precise pointing
Package includes:
1x FlyFishRC M10QMC G-P-S Module
1x SH1.0-6Pin Cable
1x SH1.0 Connector
1x G-P-S Manual
Specifications
GPS module: FlyFishRC M10QMC-5883L GPS Module
Frequencies: 72 channel
Refresh Rate: 10 Hz
Compass module: QMC5883L
B-a-u-d Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162d-B-m, Capture: -160d-B-m，Cold Start: -148d-B-m
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Cold start: <24s
Hot start: <2s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Input Voltage: 3.3V-5V，current 25mA
Output Connector: SH1.0-6P
Weight: 8.8g
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
G-P-S patch an-t-enna size: 18 x 18 mm
Total dimensions：20 x 20 x 11 mm
Features:
- 72 channel 10 Hz Refresh rate
- Built-in TCXO crystal and farad capacitor for faster hot start
- High sensitivity 18x18mm GPS patch antenna
- SH1.0-6Pin terminal design, no soldering required.
- Q-M-C-5-8-83L Magnetometer chip，Precise pointing
Package includes:
1x FlyFishRC M10QMC G-P-S Module
1x SH1.0-6Pin Cable
1x SH1.0 Connector
1x G-P-S Manual
