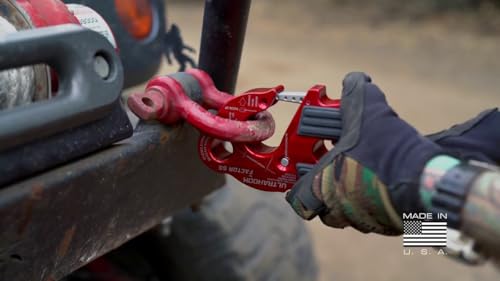

Factor 55 00250-01 Ultrahook Winch Hook Closed System Shackle Max Load 16,000 lbs ULT Strength Shackle Pin Mount 48,000 lbs Offroad 4x4 Adventure – Red. — Open-Box, 16% Off

ABOUT FACTOR55 00250-01: Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook features an industry-first closed system shackle mount hole machined into the body of the hook and installs in minutes. A latch pin, which is stored in the hook’s body, can lock the safety latch securely into place for a true Closed Loop System

ABOUT CLOSED SYSTEM WINCHING: Is a winching technique using rigging comprised entirely of closed link hardware. The non-closable opening of common winch hooks prevent hooks from qualifying as secure closed links. Poorly constructed sheet metal safety latches of hooks do not qualify as a secure means to contain loads and are prone to failure, especially during momentary slack conditions where winch loads often shift and apply high forces to these weak non-structural latches.

ABOUT THE EPDM RUBBER PADS: Integrated finger grips promote proper “Hook Up” orientation. UltraHook is the first winch hook that can be stored neatly against a winch’s fairlead protecting it from a metal-to-metal connection, thanks to EPDM rubber pads, which also eliminate the UltraHook from rattling.

TECHNICHAL SPECS: EPDM rubber pads for fairlead protection, and a finger grip feature that promotes proper “Hook Up” orientation; also prevents rattling / Can be used with line diameters up to 3/8” / 3” thick when folded flat / Maximum Load: 16,000 lbs. / Ultimate Strength Hook Throat Opening: 31,000 pounds / Ultimate Strength – Shackle Pin Mount: 48,000 pounds / Weight: 32 oz / Engineered, Tested, and Made in USA.

IMPORTANT FEATURES: Lightweight – Precision CNC machined 7000 series Military Grade Aluminum / Max opening deformation clearly laser engraved / Safety latch with integrated latch lock pin allows for true closed system winching / Includes 5/8” diameter aerospacegrade 6AI-4V grade V titanium doubleshear pin

EASTY TO INSTALL: Easy-to-install shackle mount with a hole machined into the hook’s body. Shackle pin mounting hole accepts screw pins from common ¾” and soft shackles up to 1/2” / Use either as a conventional hook or a shackle mount / No rope splicing required – double shear pin design accepts rope/cable eyes, for use with either steel or synthetic winch rope

World's safest winch hook! The industry's first winch hook with an integrated shackle pin mount. Featuring industry first closed system shack mount hold machined into the body of the hook, safety latch retraction pocket resulting in a clear throat opening, integrated secondary safety latch locking feature-latch locking pin stored in the body of the UltraHook which can be removed and inserted in the hook tip, locking the latch into place. Two methods of use: conventional hook opening, or shackle mount. Shackle pin mount allows the safer practice of Closed System Winching. Finger grip feature promotes proper 'Hook Up' orientation. Double locking safety clasp- lock the safety clasp with the included clevis pin. Latch lock clevis pin stored conveniently in hook body. Integrated EPDM rubber pads for fairlead surface protection. Max opening deformation clearly laser engraved. Lightweight - Precision CNC machined 7000 series Military Grade Aluminum. No rope splicing required - double shear pin design accepts rope/cable eyes. Designed for both steel cables and synthetic winch ropes. The first winch hook that can be stored against your fairlead protecting either your hawse or roller style fairlead from a metal to metal connection. Shackle pin mounting hole accepts shackle pins (.875" diameter). For rope and cable diameters up to 3/8". Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray. 5/8" diameter 6AI-4V grade V titanium double shear pin. Max Rated Load: 16,000 pounds. Ultimate Strength Hook Throat Opening: 31,000 pounds. Ultimate Strength Shackle Pin Mount: 48,000 pounds. Weight: 32oz. Made in the USA. Patent Pending. Warning: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
