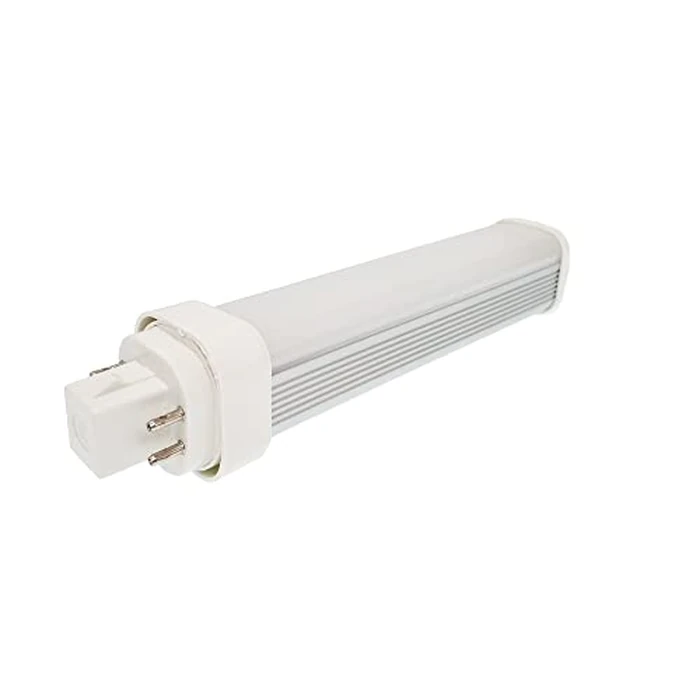

E-Simpo 11W LED GX24Q 4-pin Base Light Bulb Replace PL-C 26W CFL GX24/G24Q Horizontal LED PL Retrofit Lamp Frosted Side Light Cold White 180D Beam Angle (Remove/Bypass The Ballast)

• 1pc 6500K Cold White 11W Horizontal LED Lamp GX24Q 4-Pin Base Rotatable LED CFL PL-C 26W Replacement Bulb; • Need Remove the ELECTRONIC Ballast. Why? THE ELECTRONIC BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. • G24Q GX24Q Base (base depth: 15mm/ 0.59 inches) for G24Q-1 G24Q-2 G24Q-3 GX24q-1, GX24q-2 or GX24q-3 bases; • 180d horizontal view, side light, 360d view angle,full size of light; Not dimmable; Working voltage: AC 85-300V 50-60hz Aluminum Extrusion+Milky PC Cover • Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches. 1-Pack 11W LED GX24Q 4-pin Base Light Bulb Horizontal Use Replace PL-C 26W CFL GX24/G24Q LED PL Retrofit Lamp Frosted Side light 180D Beam Angle (Remove/Bypass The Ballast) (Daylight, Horizontal 11W)
1pcs G24Q 4Pin LED Bulb E-Simpo LED PL Horizontal Recessed 1000-1200lm, CFL 2U PL-C 26W Equivalent 180 Degree Beam (Need Remove/bypass the Ballast)

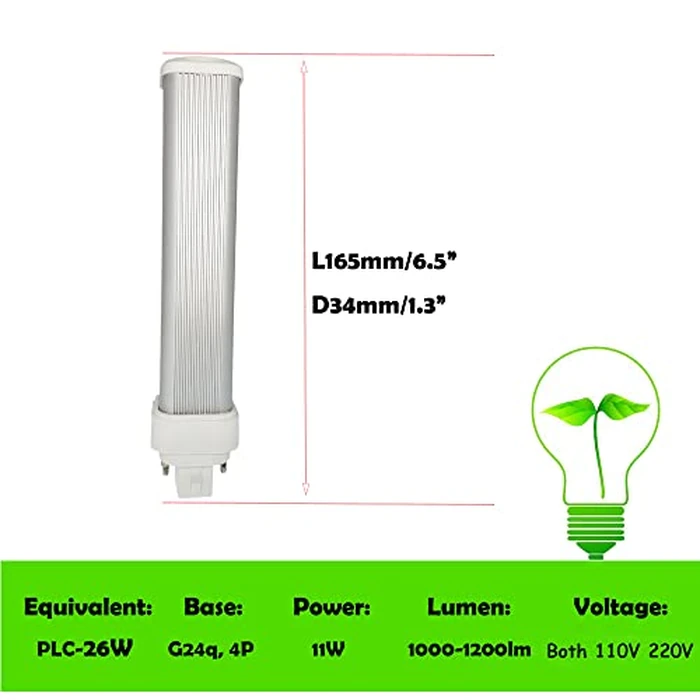

Specification
Input Voltage:110V/220V Both WorkC
Power: 11W LED, Can replace CFL G24Q 4-Pin 26W PLC Lamp
Non-Dimmable
CRI>82
Horizontal Plug-in Bulb, 180degree view angle

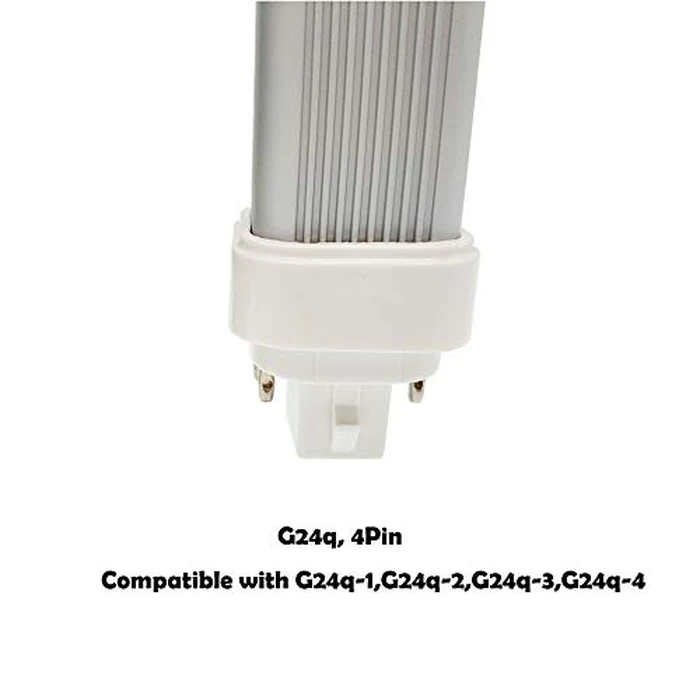

Base: G24q/GX24Q 4-Pin, compatible for G24q-1, G24q-2, G24q-3,GX24Q-1,GX24Q-2,GX24Q-3
Brightness: 11W 1000-1200LM;
Color Temperature: Cold White 6000-6500k
Application:
11W is used to Replace PL-C 26W 2U CFL. which are widely used in Use in Recessed/Surface-mounted Downlights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.


Note:
THE ELECTRONIC BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged.

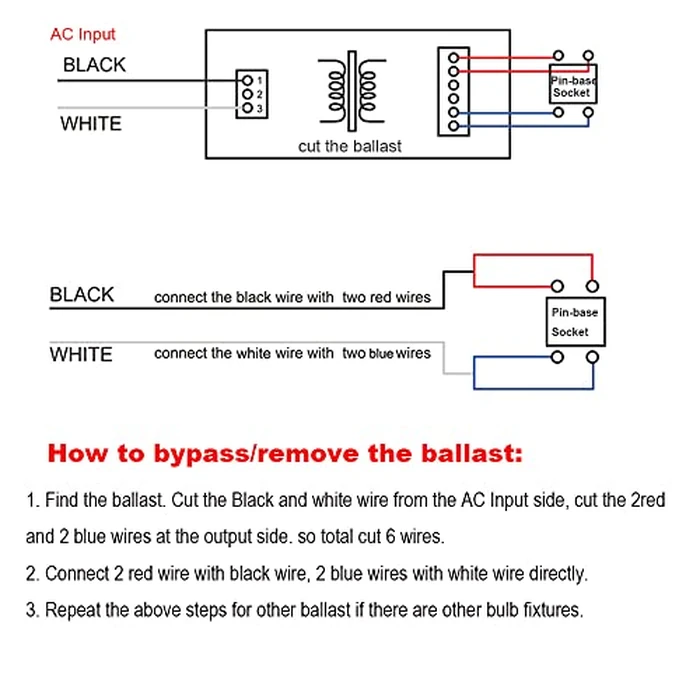

How to bypass the ballast?
1. Turn Off the Power.
2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast.
3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut.
4. Then, you can connect the two red wires to the black wire.
5. Next, connect the two blue wires to the white wire. now ballast is bypassed.
