Door Hinge Jig, Door Hinge Mortiser Hinge Installation Kit, Hinge Jig for Door and Door Frame/Jamb, Fits for 8 Hinge Sizes from 2-1/2" to 6" and 5 Door Thickness from 1-3/8" to 2-1/2".

【Intergrated Door Hinge Mortiser.】Come with a 1/2" cutting diameter router bit with a 5/8" bearing diameter and two removable sliding mechanism with hinge shape guides, our door hinge installation kit is a fantastic accessory to have on hand for cutting and installing door hinges of 1/4" round or 5/8" round or sqaure corner hinges. This hinge jig allows you to cut professional looking mortises in the doors and door frame of hinge from 2-1/2" to 6" length and door from 1-3/8" to 2-1/2" thickness.

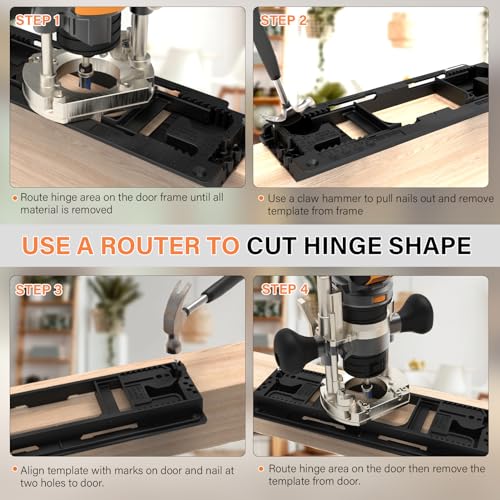

【Easy to Install and Use.】Step1: Laying out the door locations and mark the hinge locations.Step2: Set the template to the proper hinge size.Step3: Set up the template to fit your hinge shape(Square or Radius Corner).Step4: Insert the pin to proper door thickness then twist clockwise to lock.Step5: Place the template and hinge on the bottom of router with bit installed to adjust the bit depth to hinge thickness.Step6: Position the hinge template to door frame, center mark and nail two holes in place.

【No Need for a Hammer and Chisel.】You just need to use this hinge template and a router or compact router to install your door hinge.(Router not included) Located on outer wall of routing area, just set the route bit depth by placing the template and hinge on the bottom of the router with bit installed to adjust the bit depth to hinge thickness, then cutting out the door hinge shape from template area. Definitely better and faster than using a Chisel.

【Work on Both Door and Jamb.】Made of sturdy plastic material, this door hinge mortiser template is stable enough and will not damage your door when you install the door hinge and it is sturdy for you to use it frequently. The hinge router template can be adjusted for both hinge length, thickness, and round vs. square corners. Makes perfect cuts and mounting hinges a breeze. Lots better than chiseling them out.(Note:Don't work on existing and already installed door frames.)

【Package Included.】1 Door Hinge Mortiser, 1 User Manual and 1 Router Bit(1/2" cutting diameter), 2 Sliding hinge size guides, 4 Lock-in pins and 2 Reusable nails. The corner guides on the removable sliding mechanism is perfect for routing different radius hinges work well too. With this template, you can ensure that your door hinges are properly installed and aligned for a smooth and secure operation.

Door Hinge Jig, Door Hinge Mortiser Hinge Installation Kit, Door Hinge Jig for Door and Door Frame/Jamb, Fits for 8 Hinge Sizes from 2-1/2" to 6" and 5 Door Thickness from 1-3/8" to 2-1/2".
