DC HOUSE Linear Actuator 12V 1000N High Speed 10 Inch 10" Motor 14mm/s with Mounting Brackets Blcak

Specification: stroke length: 10 inches(250mm); travel speed: 0.55in/sec(14mm/sec); retracted length: 370mm(15"); extended length: 620mm(25"); current draw: 3Amps.

Material: aluminum alloy housing, IP54-rated protection sealed against dust, water, and corrosion suitable for outdoor use. The internal limit switch automatically switches off when it reaches in case of the motor idling.

Great performance: with reliable performance, stable running, the same characteristics of push and pull, good environment adaptability, etc.

Application: widely used in many industries, such as electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, and so on.

Professional team: DC HOUSE has been manufacturing linear actuators for many years, passing several technical tests.

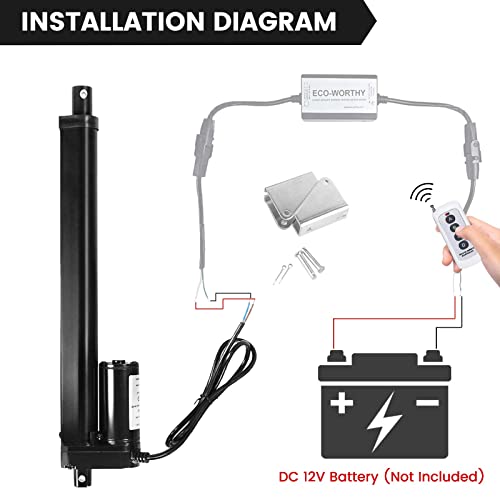

Product features Specification:Stroke length = 10 inches (250mm);Travel Speed:0.55in/sec(14mm/sec); Retracted length = 370mm(15"); Extended Length=620mm(25”）;Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N). Material: Aluminum alloy housing, IP54-rated protection sealed against dust, water, and corrosion suitable for outdoor use. The internal limit switch automatically switches off when it reaches in case of the motor idling. Great Performance: with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability, etc. Application: Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. INSTALLATION WARNING:1.The load added onto the actuator must be less than or equal to the rated load of the actuator. 2.Mount the actuator by securing the top and the bottom mounting holes to two fixed positions. The stroke length of the actuator and the limitations of the particular application will determine the location of the fixed mounting positions. IMPORTANT: 1.Confirm that the two-way movement of the item is smooth and within the actuator's stroke length after it has been installed. Additionally, confirm that no obstacles exist along the travel path of the actuator. 2.Secure the top and the bottom mounting holes of the item onto the two mounting fixtures using 5/16'' diameter bolts. 3.Connect the red wire to the positive post and black wire to the negative post of the DC power supply. 4.The operation of the item should be tested manually after the installation is completed.
