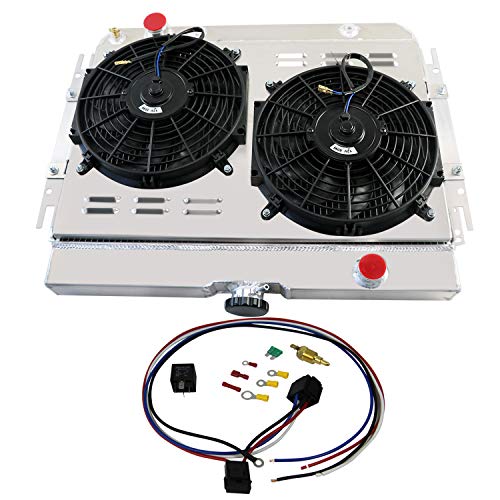

Cubauto 3 Row Core Radiator Shroud Fan For Chevy 1963-1968 Bel Air Biscayne Impala 67-68 Caprice 64-65 Chevelle,Kingswood Full Aluminum Radiator with Shroud Fan Relay Kit — Open-Box, 15% Off
Brand: Cubauto
Condition: Used - VeryGood
$24097
$28400
-15% Save $4303
Updated: 50 days ago
Description
★Compatible with 1963-1968 Chevy Bel-Air/Impala/Chevelle AT MT; Cubauto 3 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
★Core Size: 16"H x 25-1/4"W x 2-1/2"T / Overall Size: 22-1/4"H x 27-3/4"W x 4.13"T; This all Aluminum Radiator Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
★Cubauto All Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
★Easy To Install: Cubauto Brand-new radiator engineered and manufactured to meet original specifications for quick installation. Direct fit and built to last long with high quality aluminum core and plastic tanks preventing corrosion.
★Note: 100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested ;If you have any questions, please feel free to contact us, we will try our best to help you.
THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 2X12"FANS+ THERMOSTAT KITS!
Radiator Size:
Row: 3 Row Core
Material: Full Aluminum
Radiator Cap: included
Core and Tank: All Aluminum
Radiator Flow: Down Flow
Core Dimensions: 16"H x 25-1/4"W x 2-1/2"T
Overall Dimensions: 22-1/4"H x 27-3/4"W x 4.13"T
Upper Inlet: 1-1/2" located on the Driver side
Lower Outlet: 1-3/4" located on the Passenger side
Trans Cooler Included
Mount Type: Bracket
Trans Cooler Details: 1/2" 20 Straight Thread G1/4
Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4
Transmission: Automatic and Manual.
Vehicle Fitment:
FOR 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8
FOR 1963-1968 IMPALA MANY CHEVY GM CARS
FOR 1964-1967 Chevelle
FOR 1963-1968 CHEVY CHEVELLE/ IMPALA
FOR 1963-1968 Chevrolet Chevy Bel-Air
FOR 1963-1968 Chevrolet Impala/Bel Air/Chevelle
FOR 1964-1967 Chevy Chevelle Malibu
FOR 1963-1968 Chevy Biscayne
FOR 1966 1967 Chevy Caprice
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
Radiator Size:
Row: 3 Row Core
Material: Full Aluminum
Radiator Cap: included
Core and Tank: All Aluminum
Radiator Flow: Down Flow
Core Dimensions: 16"H x 25-1/4"W x 2-1/2"T
Overall Dimensions: 22-1/4"H x 27-3/4"W x 4.13"T
Upper Inlet: 1-1/2" located on the Driver side
Lower Outlet: 1-3/4" located on the Passenger side
Trans Cooler Included
Mount Type: Bracket
Trans Cooler Details: 1/2" 20 Straight Thread G1/4
Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4
Transmission: Automatic and Manual.
Vehicle Fitment:
FOR 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8
FOR 1963-1968 IMPALA MANY CHEVY GM CARS
FOR 1964-1967 Chevelle
FOR 1963-1968 CHEVY CHEVELLE/ IMPALA
FOR 1963-1968 Chevrolet Chevy Bel-Air
FOR 1963-1968 Chevrolet Impala/Bel Air/Chevelle
FOR 1964-1967 Chevy Chevelle Malibu
FOR 1963-1968 Chevy Biscayne
FOR 1966 1967 Chevy Caprice
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
