CNCTOPBAOS K12-100mm CNC 4th Axis Rotary Table 4 Jaw Chuck w/ MT2 Tailstock — Open-Box, 13% Off

Specifications of 4th Axis: Center height: 65 mm/2.56 inch; Total height:; 115 mm/4.5 inch; Angle: 0.3°/step ; Reduction ratio: 6:1; Base Material: Aluminum alloy; Size: 210x168x115 mm/8.3x6.6x4.5 inch; Weight: 7.9 KG/17.4 LB; Inner through hole diameter/shaft hollow diameter is 22 mm/0.86 inch; Output shaft diameter:30 mm/1.18 inch Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8°; Current: 3.0A; Holding torque: 270oz-in/1.8Nm; Shat diameter: 8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size: 57x57x76 mm Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65 mm/2.56 inch; Expansion stroke: 45 mm1.77 inch; Stretch distance: 50 mm/1.97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2.5 KG/5.5 LB Chuck Type: K12-100 4-Jaw self-centering chuck; Diameter:100mm; Max input torque: 60 N.m; Max Speed: 3500 R/min; External jaw clamping range: 30-80 mm/1.18-3.15 inches.; Internal jaw clamping range: 2-30 mm/0.08-1.18 inches; Internal jaw jamming range: 30-90 mm/1.18-3.54 inches; With four Anti-claw and Wrench Advantages: Rust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life;Application: The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars etc

Package include:

1set 4th axis K12 100mm ( Includes stepper motor and 4 jaw chuck) Ratio 6:1

1 x 65mm MT2 Tailstock

Descriptions:

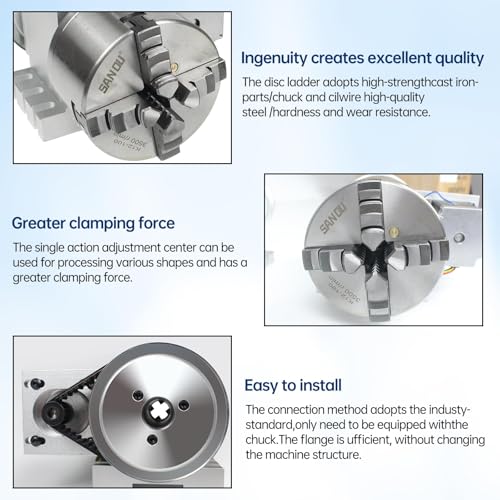

Chuck type: K12 100mm 4 jaw centering chuck

Center height: 65mm

Total height: 115mm

Angle: 0.3°/ step

Gear box output shaft diameter: 25mm

Reducing ratio: 6:1(belt deceleration mode)

Stepper motor: Nema23 57mm 3A 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

(200 x 16 x 6 ) / 360=53.33333)

Weihong system settings: 1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

360 / (200 x 16 x 6) =0.001875

Tailstock type MT2

Center Height: 65mm

Stretch distance: 50mm

Top tip: Activity type

Axial locking wrench for tailstock

Nema23 stepper motor 76mm

Shaft Diameter: 8 mm

Step Angle:1.8

Current: 3A

Temperature Rise: 80 c max

Insulation Resistance: 100MOhm(500V DC)

Holding Torque: 18kg.cm
