Cisco Webex Room Kit Mini - White
Brand: Cisco
Description
OVERVIEW:

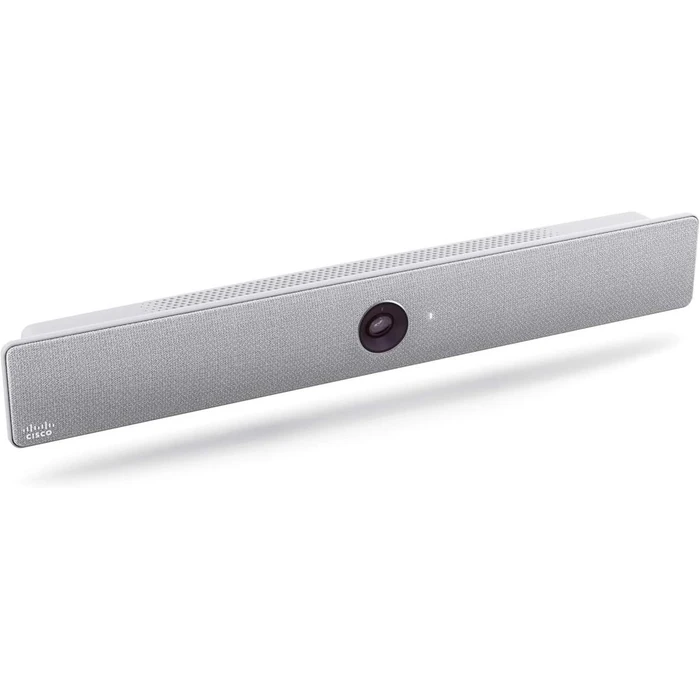

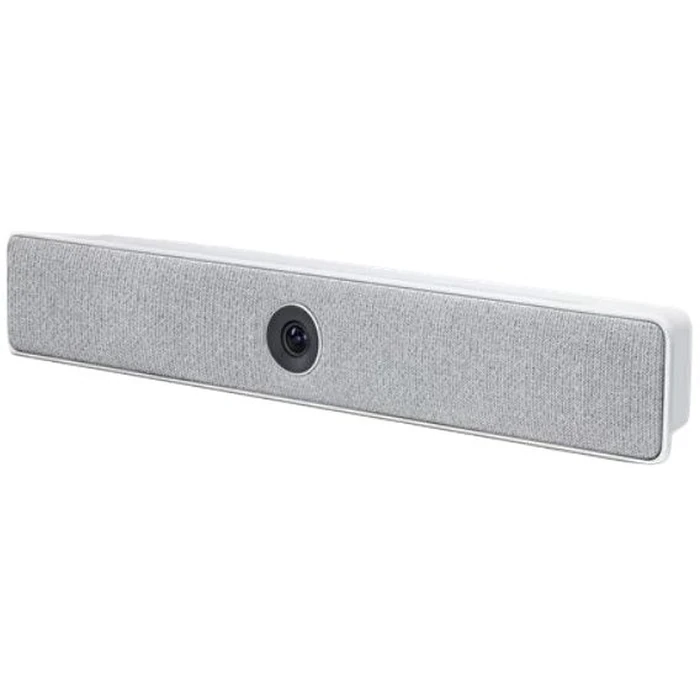

Cisco Webex Room Kit Mini
The Room Kit Mini is a compact video conferencing solution with 4K UltraHD camera capabilities, offering high-quality audio and video performance. It supports resolutions up to 3840 x 2160p and includes features like HDMI and USB passthrough, automatic noise reduction, and wireless sharing via Webex, Proximity client, and Miracast. Equipped with integrated speakers, multiple network interfaces, and advanced security features, it ensures seamless connectivity and robust performance. Suitable for small meeting spaces, it also offers embedded multipoint conferencing and adaptive SIP/H.323 MultiSite functionality. Compact and lightweight, it is easy to set up and use.
Specifications
- — Model name: Cisco Webex Room Kit Mini
- — Brand: Cisco
- — Optional Hardware Components: HDMI presentation cable (8 m/26.2 ft), 4 m/13 ft USB cable for USB pass-through feature, Screen Mount Kit
- — Bandwidth: Up to 6 Mbps point-to-point
- — Minimum Bandwidth for Resolution/Frame Rate (H.264): 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbps
- — Firewall Traversal: Cisco Expressway™ technology, H.460.18, H.460.19 firewall traversal
- — Video Standards: H.264
- — Video Inputs: One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60; Consumer Electronics Control (CEC) 2.0
- — Video Outputs: 1 HDMI output supports formats up to 3840 x 2160p60 (4Kp60); Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p); Consumer Electronics Control (CEC) 2.0
- — Audio Standards: G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
- — Audio Features: High-quality 20 kHz audio, Automatic Gain Control (AGC), Automatic noise reduction, Active lip synchronization
- — Audio Inputs: One audio in from HDMI, Internal microphones, Bluetooth® (not available on Non-Radio Version)
- — Speakers (Integrated): High-quality speakers with full-range speaker plus dual woofers in balanced configuration; Frequency response 100 Hz to 20 kHz; Amplifier power 24W; Max output level SPL 84 dB
- — MultiSite: H.239 (H.323) dual stream, Binary Floor Control Protocol (BFCP) (SIP) dual stream, Supports resolutions up to 3840 x 2160p5
- — Dual Stream: One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60; Consumer Electronics Control (CEC) 2.0
- — Wireless Sharing: Webex app (up to 3840 x 2160p5), Cisco Intelligent Proximity client (up to 1920 x 1080p5), Miracast (1080p30) – not available on Non-Radio Version
- — Multipoint Support: 4-way embedded SIP/H.323 conferencing capability with MultiSite option
- — MultiSite Features (Embedded Multipoint): Adaptive SIP/H.323 MultiSite; 3-way resolution up to 1080p30 + content up to 1080p15; 4-way resolution up to 720p30 + content up to 1080p15; Full individual audio and video transcoding; H.323/SIP/VoIP in the same conference; Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5; Best impression (automatic continuous presence layouts); Encryption and dual stream from any site
- — Protocols: H.323, SIP, Cisco Webex
- — Embedded Encryption: H.323 and SIP point-to-point, Standards-based H.235 v3 and Advanced Encryption Standard (AES), Automatic key generation and exchange
- — IP Network Features: DNS lookup for service configuration, Differentiated services (Quality of Service [QoS]), IP-adaptive bandwidth management (including flow control), Automatic gatekeeper discovery, Dynamic playout and lip-sync buffering, H.245 Dual-Tone Multifrequency (DTMF) tones in H.323, RFC 4733 DTMF tones in SIP, Date and time support using Network Time Protocol (NTP), Media adaptation and resilience, Uniform Resource Identifier (URI) dialing, Dynamic Host Configuration Protocol (DHCP), 802.1X network authentication, 802.1Q Virtual LAN, 802.1p (QoS and Class of Service [CoS])
- — Call Control: Cisco Unified Communications Manager (Unified CM), Native registration with Unified CM, Requires Unified CM Version 9.1(2) or later with device pack Room Kit Mini, Cisco Expressway Native registration with Expressway, Cisco Webex Service, Third-party H.323 gatekeepers and standards-based SIP proxies
- — IPv6 Network Support: Single call stack support for both H.323 and SIP, Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ, Support for both static and automatic IP configuration (stateless address auto configuration)
- — Security Features: Management using HTTPS and SSH, IP administration password, Menu administration password, Disable IP services, Network settings protection, Privacy cover
- — Network Interfaces: One Ethernet (RJ-45) 10/100/1000 for LAN, One Ethernet (RJ-45) for Cisco Touch 10 direct pairing, Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz (not available in non-radio versions)
- — USB Passthrough: Ability to join any web conferencing service and share content using the camera, microphones, and speakers of Room Kit Mini with a USB cable connected with the external monitor and an HDMI cable connected with the computer; 720p video resolution
- — Other Interfaces: 1 USB 2.0 port type A, 1 USB 2.0 port type C, 1 USB port, Factory reset pinhole
- — Power: 100 to 240 VAC, 50/60 Hz, 12V DC input; Average 20W, peak 70W; Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
- — Operating Temperature and Humidity: 0°C to 35°C (32°F to 104°F) ambient temperature; 10% to 90% Relative Humidity (RH)
- — Storage and Transport Temperature: -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (non-condensing)
- — Dimensions: Width 19.7 in. (50.0 cm), Height 3.2 in. (8.1 cm), Depth 3 in. (7.7 cm), Weight 4 lb. (2 kg)
- — Packaging Size: Width 23.8 in. (60.5 cm), Height 12.8 in. (32.6 cm), Depth 8.5 in. (21.6 cm), Weight 7 lb. (3.2 kg)
- — Camera Overview: 4K UltraHD camera, Supports up to 30 fps, 8 MP image sensor, 1/2.5’’ CMOS, 5x zoom, f/1.4 aperture, 120° horizontal field of view, Auto framing (face detect), Best overview, Auto brightness and white balance, Focus distance 1 m to infinity
