ChillWaves Brass Flare Tube Fittings, SAE 45 Degree 5/8" Flare Nut Air Conditioning Copper Tube Extension Butt Copper Pipe(6-PACK) by ChillWaves - Used condition

ChillWaves Brass Flare Tube Fittings, SAE 45 Degree 5/8" Flare Nut Air Conditioning Copper Tube Extension Butt Copper Pipe(6-PACK) — Open-Box, 17% Off

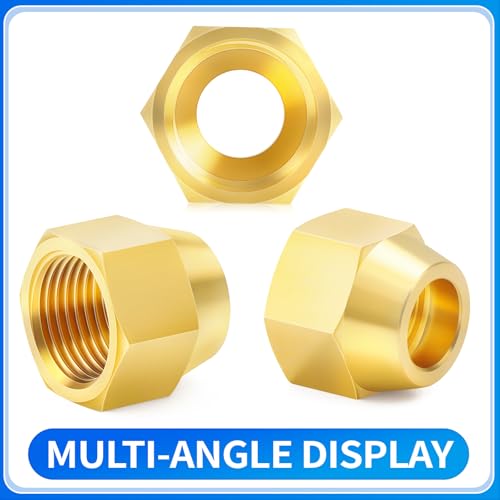

Name: ChillWaves Brass Flare Tube Fittings, SAE 45 Degree 5/8" Flare Nut Air Conditioning Copper Tube Extension Butt Copper Pipe(6-PACK)
Brand: ChillWaves
SKU: awhd-us-b0dltvx7yn
Price: 12.46 USD
Availability: InStock

Brand: ChillWaves

Condition: Used - Mint

$12⁴⁶

$14⁹⁹

-17% Save $2⁵³

Updated: 26 days ago

Buy at Amazon.com

Description

SIZE - 5/8" Flare Nuts. Flare end is SAE 45 degrees, please refer to the dimension drawing for specific diameter. MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility. USE - Suitable for gas, instrumentation, refrigeration, vacuum lines, power steering, hydraulic and pneumatic systems, manufactured for low and medium pressure piping connection engineering. WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C) WORKING PRINCIPLE - The end of the tube is flared to a 45° angle, creating a sealing surface that mates with the fitting's cone. When the nut is tightened, the flared tube is compressed against the cone, forming a leak-proof metal-to-metal seal. This design offers advantages including temperature and pressure resistance, excellent sealing performance, reusability, no welding required, easy disassembly and assembly, and straightforward installation and maintenance.

Flare fittings are the components in the pipeline system that play the roles of connection, control, reversal, diversion, sealing, and support.

PRODUCT DESCRIPTION:

1. Flare fittings are suitable for occasions where it is necessary to increase the flow cross-section and reduce fluid resistance, such as industrial piping systems, hydraulic systems, etc.

2. Flare fittings effectively reduce the risk of leakage by flaring the end of the pipe into a flared shape, which then fits with the tapered part of the fitting to form a double seal.

3. Specialized tools and skills are required for flaring and installation.

4. The sealing performance of flare fittings is excellent, and the sealing is mainly realized by crimping the slant side inner sealing way, which avoids the end face of the pipe from contacting with the fluid.

5. Flare fittings have strong pressure-bearing capacity, and the pipe wall at the flare is strengthened so that it can withstand higher pressure.

INSTALLATION GUIDE：

1. Saw off the appropriate length of pipe, need to remove the port burrs.

2. Expand one end of the pipe uniformly into a flared shape using special tools (flapper and heat gun).

3. It is recommended to apply lubricating oil during assembly.

4. Make sure the two ports fit perfectly by means of a nut or other fastening means to achieve a secure connection. Do not over-twist when tightening as this may damage the fitting or crack the pipe at the flared end.

5. When purchasing flare fittings, consider the application as this will affect the material type, shape, size and desired durability. Fittings are threaded or unthreaded and come in many shapes, styles, sizes and schedules (wall thickness)

PACKAGE INCLUDED:

6 x 5/8" Flare Nuts

1 x Teflon tape

Buy at Amazon.com

Sold by

Amazon Warehouse

Verified Retailer

Official Amazon outlet for open-box & returned items

Backed by Amazon's A-to-Z Guarantee
30-day return policy
Ships from Amazon fulfillment centers
Price verified on Amazon

Product Details

SKU:: awhd-us-b0dltvx7yn
Model:: CWJX377
Country:: US
ASIN:: B0DLTVX7YN
