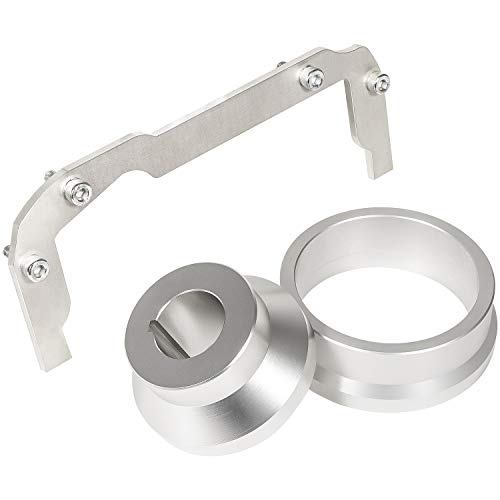

Camoo LS Rear Main Cover Alignment Tool, Front Cover & Oil Pan Alignment Tool Kit, Heavy Duty Billet Aluminum Engine Sealing Installer for LS1 LS2 LS3 LS6 LSA LQ4 4.8 5.3 5.7 6.0
Brand: Camoo
Condition: Used
$2233
$2550
-13% Save $317
Updated: 2 days ago
Description
[ For LS Engine ] -- This Front / Rear Cover Alignment Tool & Oil Pan Alignment Tool Kit Compatible With GM LS engines 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92.
[ FUNCTION ] -- This Alignment Tool Kit helps align the front and rear engine covers for proper seal function and longevity. Designed to be used in conjunction with each other.
[ A MUST HAVE ] -- This is a must for people replacing the front or real main seal in a GM LS Series engine. 1. The front rear cover alignment tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed. 2. While the oil pan alignment tool mimics the oil pan thus providing critical alignment of the oil pan and front cover.
[ TOP QUALITY ] -- Machined from Billet aluminum & Quality steel. Very tight tolerances for a perfect alignment. This kit is a must have for engine builders and mechanics!
[ PACKAGE INCLUDES ] -- 1 x Oil Pan Front Cover Alignment Tool With Bolts, 1 x Front Cover Billet Alignment Tool, 1 x Rear Cover Billet Alignment Tool. Guarantee with 12 months warranty.
[ SATISFACTION GUARANTEE ] -- If you are not satisfied with Camoo products, simply return it for a full-refund in 30 days. Guarantee with 12 months warranty. No worry about buying!
Fitment references
Front Rear Cover and Oil Pan Alignment Tool Kit For 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92 Engines.
A must have
This is a must for people replacing the front or real main seal in a For GM LS Series engine. Fits for all LS series engine. For LS1, LS2, LS3, LS4, LS6, LS7, LS9, L92, L76
Nice design
- For LS engine, the oil pan is a stressed member and adds to block rigidity.
- For this reason, oil pan can't simply be slapped in place along with the front and rear engine covers, it must be carefully aligned with the block.
Instructions
This Front and Rear Cover Alignment Tool Kit is used to install the front cover on any For GM LS engine.
This tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed.
You will have to exercise care to align horizontally the cover to the oil pan.
Installation of front cover: (no seal installed in Front cover):
-Loosely install the front cover
-Install the seal tool over the snout of the crankshaft using the large end
-Check the alignment to the oil pan
-Tighten the front cover bolts to specifications
-Install the balancer lip seal
Fitment references
Front Rear Cover and Oil Pan Alignment Tool Kit For 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92 Engines.
A must have
This is a must for people replacing the front or real main seal in a For GM LS Series engine. Fits for all LS series engine. For LS1, LS2, LS3, LS4, LS6, LS7, LS9, L92, L76
Nice design
- For LS engine, the oil pan is a stressed member and adds to block rigidity.
- For this reason, oil pan can't simply be slapped in place along with the front and rear engine covers, it must be carefully aligned with the block.
Instructions
This Front and Rear Cover Alignment Tool Kit is used to install the front cover on any For GM LS engine.
This tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed.
You will have to exercise care to align horizontally the cover to the oil pan.
Installation of front cover: (no seal installed in Front cover):
-Loosely install the front cover
-Install the seal tool over the snout of the crankshaft using the large end
-Check the alignment to the oil pan
-Tighten the front cover bolts to specifications
-Install the balancer lip seal
