Brushless Motor Kit with 3.5mm Connector 2212 920KV CW 30A Brushless ESC Propeller for F450 F550 S550 F550 Helicopter Quadcopter — Open-Box, 15% Off

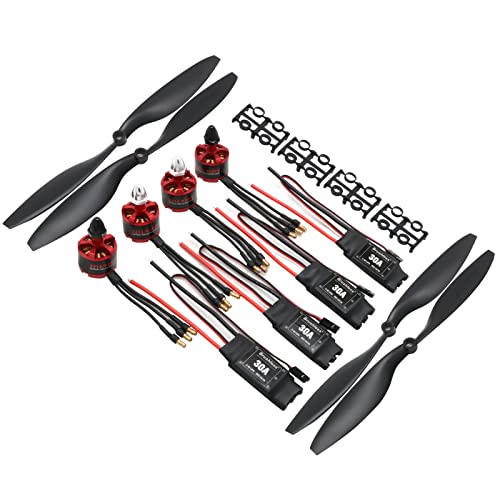

【More Convenient】 Our brushless ESC motor comes with 3.5mm connector, which effectively avoids welding problems and saves more time and effort. 【Widely used】This 2212 920KV 30A CW CCW ESC drone motor is perfect for your F450 F550 S550 F550 Helicopter Quadcopter 【New upgrades】havcybin brushless motor uses a stainless steel motor shaft CNC machined aluminum housing while enhancing the safety and stability of the anti-release ring, active heat sink greatly reduces the motor temperature, making brushless dc motor more powerful. 【High performance】 2212 brushless motor the upper limit of the speed is 210,000 rpm in 2 poles, 35,000 rpm in 12 poles, and 42,000 rpm in 14 poles. 8KHz PWM control with speed control curve. Automatic throttle adaptation for more remote control devices. With BEC, the MCU separates the power supply and works more stably. 【Package Included】4 X 2212 920KV CW Brushless Motor; 4 X 30A Brushless ESC; 4 X Propellers and other mounting Accessories.If you have any questions, please contact us at first, we will provide you with satisfactory solutions.

2212 920KV CW Brushelss motor it is a must for every model aircraft enthusiast this product requires a certain amount of basic mechanical knowledge, children should be used or installed under the supervision of a guardian, Otherwise it may lead to damage or danger of the product

Specification:

Outer diameter:

28.0 mm

24.0 mm

920kv

Fit for Dji Phantom F330 F450 F550 X525

Rotation direction Right right hand tread

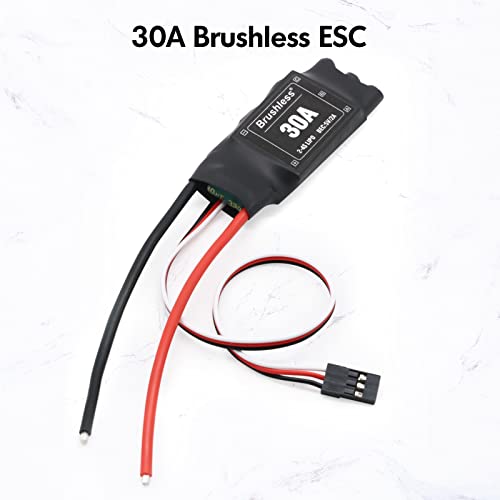

30A ESC:

Continuous current 30A, instant 35A, 40A for 10 seconds.

Dimensions / weight: 45 * 24 * 11 (mm), 25 grams (including line)

Voltage range: 4V-16V

Number of batteries: 2-4LIPO (4LIPO does not allow BEC output)

BEC output: 2A continuous, (instantaneous 3A)

2LIPO 4-5 Miniature Servo

3LIPO 3-4 micro servo

Protective function:

Automatically select 2-3LIPO, the protection voltage is 6V/9V respectively;

Automatically select NIMH, the protection voltage of each section is 0.8V;

Safe start, throttle position is not allowed to start;

Temperature protection, 110 degree surface temperature shutdown;

Out of control protection, no signal stops after 1 second.
