Bringsmart DC 12V 100rpm with Bracket 37mm Diameter Gearbox Geared Motor Centric Ouput Shaft Micro Gear Motor Large Torque Reduction Motor — Open-Box, 19% Off

[Parameter] Voltage DC12V, No load speed 100rpm, Load speed 93rpm, Load torque 1.17kgf.cm, Load current 0.6A, Stall current 1.65A, Power 10W. [Package] 1pcs JGB37-520 gear motor, 1pcs 37mm mounting bracket, 6pcs M3 screws for locking motor and bracket, 4pcs M3 screws and nuts for mounting bracket, 2pcs 4.8mm reed terminal and sheathed female connector for connecting motor to wires. [Features] All Metal Gears, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable. Steel 5.5mm D Output Shaft, using high hardness steel, good toughness, impact resistance. Pure Copper Rotor. with precision winding technology, the geared motor power instant increased by 30%. [Notes] 1, If the motor does not work properly, it may be because the electrode piece may be knocked into the motor during transportation due to collision, causing connection problems. Gently pull out a little and try again. 2, the no-load speed of the motor itself has an error of 10% floating up and down. At load, the motor speed will also drop to the load speed. 3, this motor can not work continuously for a long time, please be able to rest for 5 minutes after working for 5 minutes. To ensure the normal life of the motor. [Insurance] Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm, please feel free to contact us! If you have any question about the motor, please also contact us. We will try our best to reply you asap. Package：

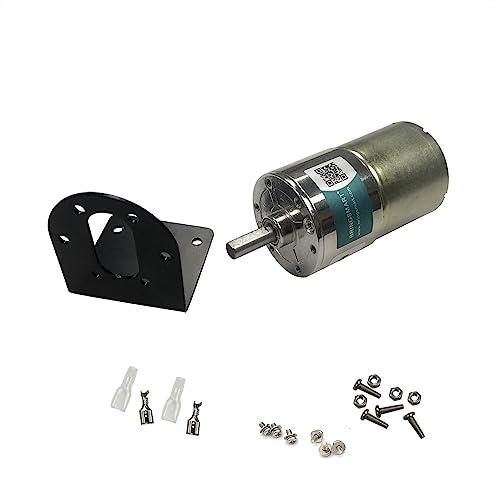

1 pc JGB37-520 motor
1 piece mounting bracket
6 pieces M3 screws
4 pieces M3 screws and nuts
2 pcs 4.8mm reed terminal and sheathed female connector
Scope of application：
Parking locks, intelligent carts, medical devices, intelligent equipment, card dispensers, channel gates, vending machines, packaging machinery, sweepers, etc.
Motor precautions：
1. When you use the motor, there should be no binding objects, such as adhesive should not flow into the bearing through the rotating shaft, which will harm the operation of the motor.
2. The manual rotation of the shaft may have the opposite effect on the life of the motor, in order to extend the life of the motor, please check whether your load is in accordance with the regulations, do not overload or hang the end of the shaft with objects that affect the rotation.
3. Heavy eccentric radiation loads are harmful to the life of the motor.
4. Do not store the motor in high temperature or extreme humidity, or in corrosive gas, which will reduce the motor's effectiveness.
5. Do not run the motor in high temperature and humidity.
6. When soldering the motor terminals of positive and negative power supply, the temperature of the soldering iron should be 340°C to 40°C and the heating time should be within 3 seconds.
7. Do not allow the motor shaft to jam, when the power is transferred, the motor will overheat in a short time and burn its accessories.
8. Supply the specified power and be sure that it is within the measurable range. Do not press the pulley or gear into the motor with abnormal weight.
9. When installing the motor, the screws are too long, which may cause contact between the motor itself and the rotor, and may affect the characteristics.
