BOSYTRO Upgrade 36V 27.7A 1000W DC Switching Power Supply, Universal Transformers PSU AC110V/220V (SMPS), Upgraded Output Port with Power Cord, 36 Volt Power Supply for 3D Printer, CCTV, DC Motor — Open-Box, 8% Off

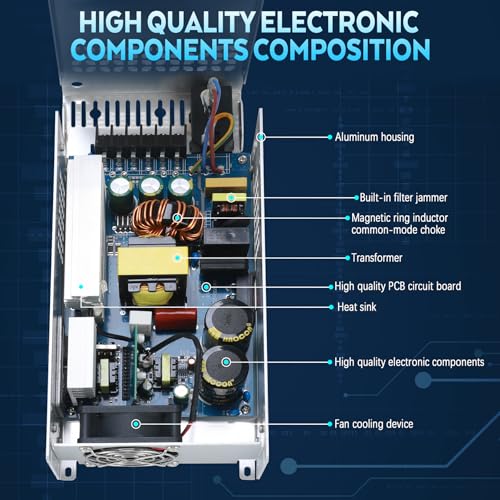

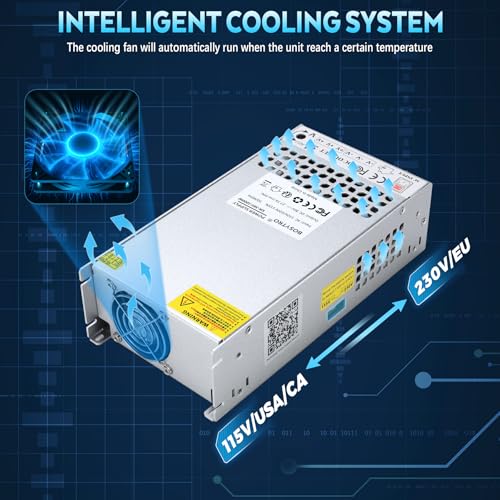

【AC/DC 36V Power Supply】1. 36V 27.7A 1000W Power Supply . Input: AC 110/220V; Output: Default DC 36V, Adjustable range: ±10%, Adjustable voltage range is 32.4V-39.6V, which greatly extends its application range and can provide up to 800 watts of maximum power with an efficiency of up to 80%. When connecting equipment with high peak variations, such as motors, please select a power supply at least 2 greater than the rated power of the equipment to ensure safety. 【AC/DC 36V Power Supply】2. 36 volt power supply, Three output channels are available to supply power to multiple load devices.The new BOSYTRO power supply has upgraded its output port, added a power port and power cord,Installation bracket+connection terminal accessory package，eliminating the hassle of having to match a separate power cord and making the connection easier and faster. 【Good Heat Dissipation】The power transformer is made of porous metal aluminum material, low noise and good and stable heat dissipation. The 1000W power supply with intelligent temperature control fan, only to reach a certain operating temperature when the fan will run, in order to prevent the converter overheating and failure;The operating temperature range of this switching power supply: 14℉-140℉. 【Multiple Protections】36 Volt 27.7A 1000W dc power supply is strictly tested before leaving the factory, smart chip provides overload auto power off/over voltage auto power off/over heat auto power off/short circuit protection, 110v to 36V converter is RoHS/CE/LVD/EMC safety certified; lead-free process, meets the environmental protection RoHS requirements; provides effective protection for your power safety. 【Input Voltage 115V/230V】There is a voltage switch on the side of the 36V dc transformer, we set 115V for American customers at the factory, before using, please check whether the input voltage is 115V, please switch to the local country's voltage to use; to avoid the voltage mismatch damage to the power supply equipment. 【Wide Applications】 The unit converts AC mains power to low voltage DC 36V with a peak power of 27.7A 1000watts, which works perfectly with most 36V devices under 1000 watts, such as LED strips, 3D printers, ham radios and more. LED power supply will automatically output 0~27.7A to match your device, the actual current depends on the load, such as 5A (180W), 10A (360W), 15A (540W), 20A(720W), 25A(900W).... please make sure your load device matches the 36V supply voltage and the current is less than 27.7A. Please do not overload it and do not use it as a charger, it is just a voltage converter. 【Description of power supply parameters】

Output voltage: 36V (DC Adjustable voltage range ±10%)

Current range (electric current): 0 to 27.7A

Rated power: 1000W(max)

Input voltage: AC110V/220V (85-145V /185-265V)

Please switch the appropriate voltage before use

Opening difference: +/-1%.

Efficiency: 80%.

Frequency is: 50-60Hz

Temperature coefficient: ±0.03%/°C (0~50°C)

Operating temperature: -10~60℃

Humidity during operation: 20-90%RH

Storage temperature: -20℃~85℃

Humidity during storage: 10%~ 95%RH

Size: 245*125*65mm (L*B*H)

Net weight: 1.6kg

Connection

-V:Negative (DC output)

+V:Positive (DC output)

Input Port: AC Input Port

Accessories: AC power cord+installation package

Caution

Note: The actual power is 80% of the rated power of the power supply (Example: If the power of your device is 800 watts, you need to buy a power supply with 1000 watts or more).When used indoors, the power supply is not waterproof. It is normal for the power supply to have a built-in fan and make a noise when it is working.
