AURSINC Filter Attenuator, RF Demo Kit NanoVNA RF Tester Board for NanoVNA-H NanoVNA-F Vector Network Analyzer Kits — Open-Box, 8% Off
Brand: AURSINC
Condition: Used
$1563
$1699
-8% Save $136
Updated: 16 hours ago
Description

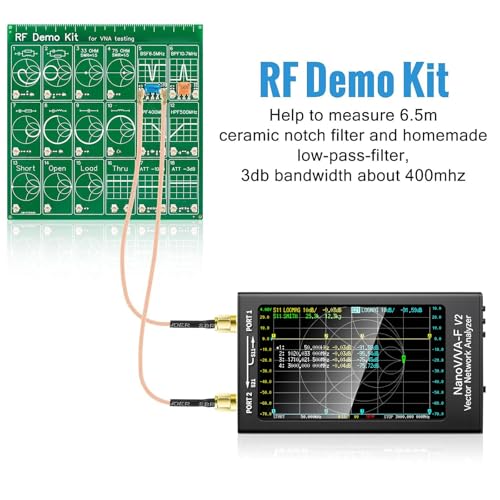

[Evaluating and Learning Nanaovna] The RF Demo Kit is a NanoVNA RF test board independently designed by BH5HNU, with a size of 10*10cm / 3.94*3.94 inch. The demo calibration board for evaluating and learning nanaovna vector network analyzer, antenna analyzer test calibration learning, making sure your setup is working
[Tiny but Mighty] This RF Demo Kit is integrated with 18 functional modules. Can be used to measure 30MHz short wave low-pass-filter LPF, 100MHz FM high-pass filter HPF, 433MHz commonly used SAW band pass filter BPF, 6.5MHz ceramic trap BSFtt
[Note] The test parameters of the 18 patterns of the test board are described as follows. Two steps must be performed before testing: Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA-F machine. Step 2. Recalibrate the machine using the 13 Short, 14 Open, 15 Load, and 16 Thru circuits on the test board, and save the parameters to SAVE 0
[Applicability] It works with Nanovna-h / Nanovna-h4 / Nanovna-f / f v2 / f v3 / Nanovna saa-2n, and other nanovna antenna analyzer
[Package Included] 1x PCB RF tester board, 2 x 20cm U.FL connectors (Be aware the connectors on the test cables that connect to the PCB are only good for a hand-full of connection/disconnection cycles before they break)
The test parameters of the 18 patterns of the test board are described as follows.
Two steps must be performed before testing:
Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA-F machine.
Step 2. Recalibrate the machine using the 13 Short, 14 Open, 15 Load, and 16 Thru circuits on the test board, and save the parameters to SAVE 0

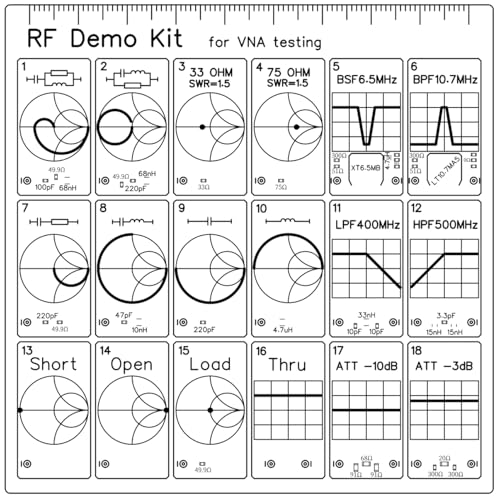

RF Demo Kit NanoVNA RF test board, size 10*10CM, used to learn vector network analyzers, including:
1. RLC circuit
2. RLC circuit
3. 33 ohm resistance, SWR=1.5
4. 75 ohm resistance, SWR=1.5
5. BSF Ceramic Notch, Centre Freq = 6.5MHz
6. BPF Ceramic Filter,Centre Freq = 10.7MHz
7. RC series circuit
8. LC series circuit
9. Single capacitance
10. Single inductance
11. Homemade low-pass filter, 3dB bandwidth 400MHz
12. Homemade high-pass filter, 3dB bandwidth 500MHz
13. Short Circuit
14. Open Circuit
15. 50 ohm Circuit
16. Through Circuit
17. 10dB attenuation circuit
18. 3dB attenuation circuit
Two steps must be performed before testing:
Step 1. Connect the two 20CM SMA to IPEX adapter cables to the NanoVNA-F machine.
Step 2. Recalibrate the machine using the 13 Short, 14 Open, 15 Load, and 16 Thru circuits on the test board, and save the parameters to SAVE 0
RF Demo Kit NanoVNA RF test board, size 10*10CM, used to learn vector network analyzers, including:
1. RLC circuit
2. RLC circuit
3. 33 ohm resistance, SWR=1.5
4. 75 ohm resistance, SWR=1.5
5. BSF Ceramic Notch, Centre Freq = 6.5MHz
6. BPF Ceramic Filter,Centre Freq = 10.7MHz
7. RC series circuit
8. LC series circuit
9. Single capacitance
10. Single inductance
11. Homemade low-pass filter, 3dB bandwidth 400MHz
12. Homemade high-pass filter, 3dB bandwidth 500MHz
13. Short Circuit
14. Open Circuit
15. 50 ohm Circuit
16. Through Circuit
17. 10dB attenuation circuit
18. 3dB attenuation circuit
Sold by
Amazon Warehouse
Official Amazon outlet for open-box & returned items
- Backed by Amazon's A-to-Z Guarantee
- 30-day return policy
- Ships from Amazon fulfillment centers
- Price verified on Amazon
Product Details
- SKU:
- awhd-us-b08rnldsl4
- Model:
- 20210617
- Country:
- US
- ASIN:
- B08RNLDSL4
