Asymmetric Cycle Timer Relay AC DC 12V-240Volt 16A, SPDT Mini Adjustable Repeat Cycle Time Relays Switch ON Off GRT8-S1, Electronic Timer Relay 10-Position from 1S to 1 Minute to 100 Days in Din Rai — Open-Box, 11% Off

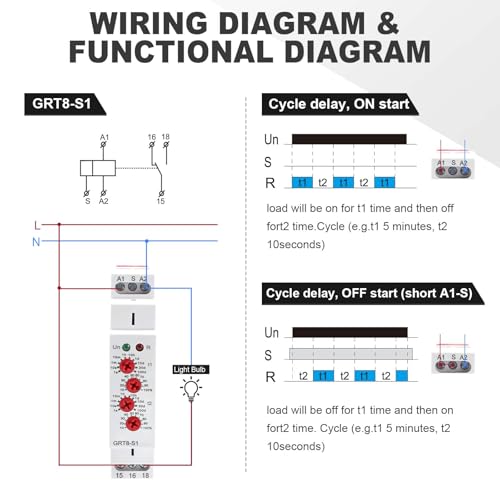

10 CONTROL DELAY FUNCTION: grt8-s1 ac dc 12v 24v 110v 120v 240V cycle delay timer relay, can preset the machine start time, repeat cycle timing relay has a wide delay setting range from 0.1 seconds to 1 minute to 100 days, working voltage is AC DC 12vto 240v (50-60Hz), output contact: 1SPDT (1NO 1NC), rated current is 16A. GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set), and function E as shown in the figure, F,G,H,I,J INDICATOR BUTTON: grt8 s1 ac dc 12-240v cycle relay timer module, working status of asymmetric cycle timer relay is indicated by LED indicator: Power indicator: Green LED (constantly on means the input power end is normal). Output relay indicator: Red LED (constantly on means the output end is normal). If you want to set the delay to work after 5 days and work for 1 day, please adjust the first knob of this mini Adjustable Repeat Cycle Time Relay Switch to 10 days and the second knob to 50%, then the circuit will start to turn on after 5 days, adjust the third knob to 10 days and the fourth knob to 10%, circuit will turn off and work for one day, and repeat above process through pulses HEAVY-DUTY MATERIAL:The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Electronic repeat cycle timer relay sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS DESIGNED FOR EASY INSTALLATION: The Din rail delay timer relay With super small volume measures 2.88 inches x 3.68 inches x 0.9 inches, din mount cycle timer weighs approximately 2.7 ounces, and is installed on a 35mm Din rail EXTENSIVELY UTILIZED: This spdt repeat cycle timer GRT8-S1 16A meets the requirements of AC/DC 12V-240V, standard voltage levels such as 12V 24V 120V 240V, etc, plug in delay on off relay time delay relay can be used in Industrial automation, production line timing control, equipment protection, HVAC systems, lighting control, solar/energy storage systems, water pumps and irrigation systems, residential applications, transportation and infrastructure, security systems, laboratories and other fields DEDICATED ENGINEERING SUPPORT SERVICES: If you have any questions about mini timer time delay relay installation or use, or if you encounter any problems during use, please feel free to reach up to Sezbaifles at any time. Please check the instructions and videos before operation, which can help you better use the relay

Multifunction Time Relay GRT8 M with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days(GRT8-M1 AC DC 12-240V)

GRT8-M1 Delay Time Relay, Timer Relay Delay Off Multifunctional Time Delay Relay, On Off Timing Relay with 10 Functions DIN Rail Mount AC230V

16A Multifunctional Delay Time Relay 10 Function Choices 1 Output Control Relay with DIN Rail Mount

6A Multifunction Time Relay 10 Function Choices 1 Output Control Relay

Multifunction Timer Relay with 10 Funcitons, 16A 1SPDT Time Delay Relay

GRT8-M1 Delay Time Relay, Timer Relay Delay Off Multifunctional Time Delay Relay, On Off Timing Relay with 10 Functions DIN Rail Mount

Time Relay DIN Rail 35mm Cycle Delay Timer Relay Switch for Industrial Control

1.FUNCTION& APPLICATION: factory automation multifunctional timer relay, preset machine start time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide operating voltage of AC/DC 24-240V (50-60Hz), and a rated current of 16A. Output contact: 1SPDT (1NO1NC). This 12V timer delay on relay can be used in industrial equipment, lighting, manufacturing industries to precisely control the delay time for changing lighting, heating, motors, machines, etc.

2.INDICATOR BUTTON: grt8 m1 ac 230v the working status of the time delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator is on (indicates the start of work), the red LED indicator is off (indicates the stop of work). Refer to the detailed technical parameters:

a. Select the function you need, such as A, power on delay

b. Select the time you need, for example: set the delay for 5 minutes

c. Adjust the time range knob to 10m

d. Turn the percentage knob to 50%

3. CHOICE MATERIALS: GRT8M multi-function delay time controller module is made of industrial-grade plastic, and the internal wires use copper wires, which are in line with UL, CE, CB, RoHS standards, flame retardant, and the relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in a humid environment to protect your expensive equipment

4.COMPACT AND EASY TO INSTALL: The multifunctional electric timer relay for DIN rail 12v-240v delay timer relay measures 2.88" x 3.68" x 0.9", 2.3 oz, mounted on 35mm DIN rail, easy to install, portable and compact, save space

5. WORRY FREE AFTER-SALES SERVICE: provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to at any time

Time Relay GRT8-M Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount

Special 10 Functions:5 time functions are controlled by the power supply voltage, 4 time functions are controlled by the control input, and 1 latch relay function.

Instructions:Comfortable and well-arranged function and time-range setting by rotary switches.

Time range:The time scale is 0.1s-10 days, divided into 10 ranges.

Relay Status:Its working status is indicated by the LED indicator.

Product Size:Ultra-small size, only 18mm width, 35mm rail mounting.
