ANMBEST MOSFET Trigger Switch 4 Channel Drive Module 400W — Open-Box, 17% Off
Brand: ANMBEST
Condition: Used - VeryGood
$832
$999
-17% Save $167
Updated: 14 days ago
Description
Operating Voltage: DC 3V - 27V; The trigger source: digital high-low (DC3V - 20V); continuous current: 10A; power: 400W.
High Reliability, High Availability: The drive module using high quality ultra-small optocoupler, with strong anti-interference ability, and stable performance, is complete isolation of input signal and output.
Supporting Multiple Signal Source Triggers: Can be connected microcontroller IO port, PLC interfaces, DC power, etc.
PERFECT SUPPORT PWM: You can access the PWM signal, the signal frequency 0--20KHZ perfect support.
WIDELY APPLICATIONS: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on.

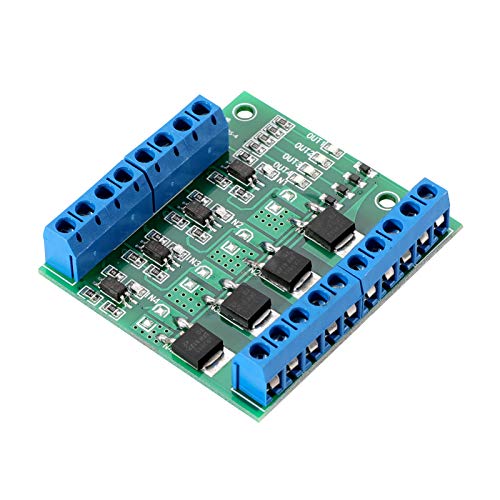

The board is of high power MOS trigger switch driver module and control board with field-effect tube to adjust the electronic switch. Besides it works at 10A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way.
Technical Specifications:
Operating Voltage: DC 3V - 27V
The trigger source: digital high-low (DC3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support
Output capacity: DC 3.7V - 27V, at room temperature, continuous current 15A, power 400W
Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on
PWM frequency: 0-200Hz
With input signal indicator
With output indicator
Operating temperature: -40-85 ℃
Module interface:
DC+: The positive pole of the device's DC power supply
DC-: The negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connect to the positive terminal of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)
Package includes:
1 X 4 Channel MOS FET Trigger Switch Drive Module
Technical Specifications:
Operating Voltage: DC 3V - 27V
The trigger source: digital high-low (DC3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support
Output capacity: DC 3.7V - 27V, at room temperature, continuous current 15A, power 400W
Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on
PWM frequency: 0-200Hz
With input signal indicator
With output indicator
Operating temperature: -40-85 ℃
Module interface:
DC+: The positive pole of the device's DC power supply
DC-: The negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connect to the positive terminal of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)
Package includes:
1 X 4 Channel MOS FET Trigger Switch Drive Module
