ALLOYWORKS 4 Row All Aluminum Radiator + Shroud Fan + Relay For Chevy Corvette Base Stingray 5.7L 7.4L 1973-1976 — Open-Box, 10% Off

◆ Made out of aluminum. 100% quality assurance tested. The tanks are 100% welded by TIG. ◆ For 1973-1976 Chevy Corvette Base Stingray V8 5.7L 7.4L ◆ Core Size: 16 6/7''H X 27 5/9''W; Overall Size: 19 2/3''H x 33 4/9''W; ◆ Upper Inlet: 1 1/2" located on the driver side; Lower Outlet: 1 3/4" located on the passenger side; Transmission Oil Cooler: G1/4(Z);

Radiator Size:

High Performance Racing Spec.

4 Row of tubes Core Racing Design

Petock Drain: OEM style brass petcock drain

Core Size: 16 6/7''H X 27 5/9''W

Overall Size: 19 2/3''H  x 33 4/9''W

Upper Inlet: 1 1/2" located on the driver side

Lower Outlet: 1 3/4" located on the passenger side

Transmission Oil Cooler: G1/4(Z)

Please Check the Size Before You Buy!

Vehicle Fitment:

For 1973-1976 Chevy Corvette Base Stingray V8 5.7L 7.4L;

FANS:

Volt: 12v

Maximum Fan CFM: 1730 cfm

Wattage: 90 Wattage

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

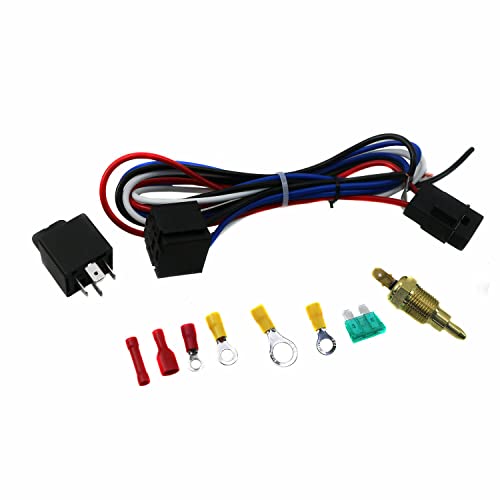

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

ct directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
