Akozon TSH-06F Integrated Circuit Tester IC Transistor Meter, Proficient Device with 5V 3.3V AUTO Modes for Microelectronics Engineers, Automatic Shutdown Function, Portable — Open-Box, 36% Off

❥❥Expansive Test Modes: The TSH06F Integrated Circuit Tester IC Transistor Meter is an advanced tool created for microelectronics engineers and maintenance . It offers multiple testing modes like the 5V mode, 3.3V mode, and AUTO mode for versatile use. ❥❥Broad Spectrum Testing: This multifunction tester is competent in testing 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, and more. It can also automatically identify transistors and voltage regulator voltages, significantly enhancing its functionality. ❥❥Comprehensive Data : Equipped with over 1,300 types of built-in chip data and 420+ transistor data , the device streamlines testing process. It covers most common devices within 24 pins, significantly alleviating workload and enhancing efficiency. ❥❥Diverse Testing Types: The IC Meter goes beyond basic testing. It includes logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage value test, optocoupler—making it a comprehensive device for all your microelectronic testing needs. ❥❥Automatic Shutdown and Compact Design: The transistor tester comes with an automatic shutdown function, powering off after 60 seconds of inactivity. This feature conserves its battery life, extending its usability. Plus, it's small, portable design makes it for circuit testing on-the-go. Enjoy its convenience and the quick, accurate testing it provides. Specification:
/>Item Type: Integrated Circuit Meter
/>Material: ABS
/>Model: TSH-06F
/>Battery: 2 x 1.5V AA Battery (Battery Not Included)
/>Uses: Test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic identification of the most body tube, identification of the voltage value of the voltage regulator tube, etc.
/>Test Type: Logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage test, optocoupler.
/>How to Use

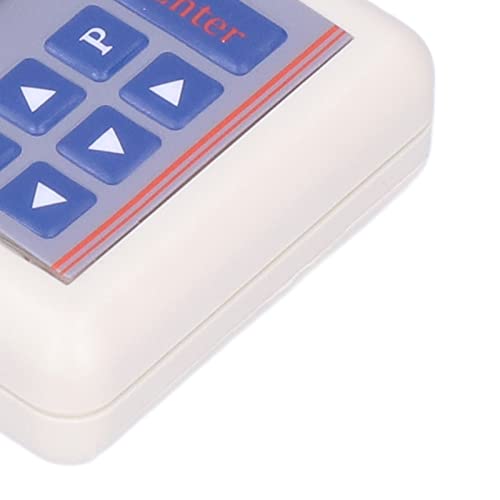

/>With 7 buttons on the panel which are up, down, left, right and Enter, and shortcut keys O and P.
/>Up and down keys are used to adjust the catalog and change the model number, left and right keys are used to move the cursor left and right to select the item to be changed. Enter key is used to switch the machine and execute test commands. Open the battery back cover, put in 2pcs AA 1.5V batteries (battery not included), and then close the battery cover. Press the Enter key for more than 2 seconds to boot, and the current battery voltage will automatically be displayed when the battery is turned on. Please replace the battery when the battery power is too low. The low voltage will affect the reliability and of the test results and automatically shut down.
/>Power On: Press the Enter key for more than 2 seconds to power on.
/>Shut Down:
/>1. Press Enter in the OFF directory to shut down immediately.
/>2. Press the Enter key in any directory for more than 10 seconds to shut down.
/>3. After 60 seconds without any , it will automatically shut down.
/>Shortcut Key:
/>1. The O key is the quick shutdown key (06 type).
/>2. The P key is a backlight key (06 type).

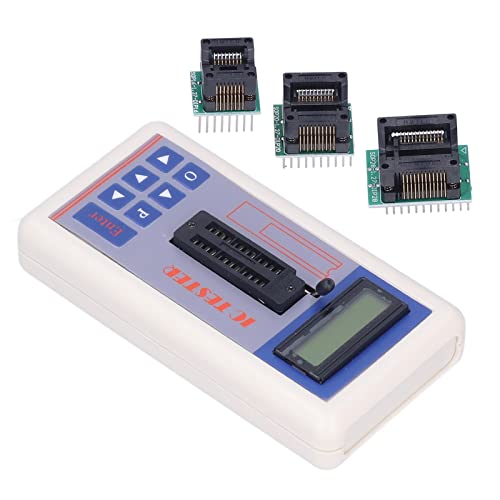

/>Package List
/>1 x Tester (Battery Not Included)
/>3 x Terminal
/>1 x Manual
/>
/>Note
