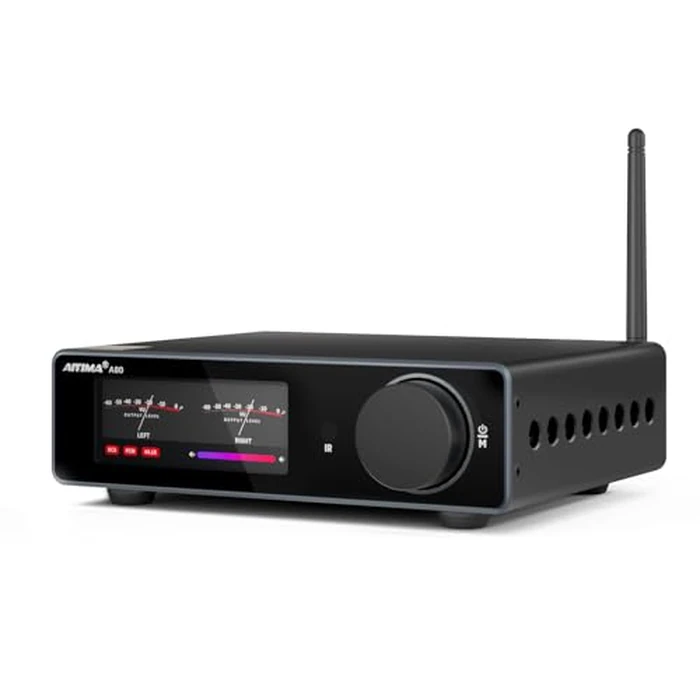

AIYIMA A80 Bluetooth Stereo Amplifier DAC HiFi Home Audio Component TPA3255 with PFFB,2 Channel Hi-Res Class D Power Amp | PC-USB COA Opt Inputs,Digital VU Meter | Pre-Out | TRS Balanced Input |Tone

• 【Upgraded version】AIYIMA A80 Bluetooth Amplifier DAC Stereo HiFi Home Audio Receiver with PFFB,2.0 Channel Hi-Res Class D Power Amp with PC-USB COA OPT Inputs,Digital VU Meter | SUB Pre-Out | TRS Balanced Input | Tone Control & Remote • 【All-in-One DAC Amplifier】Using ES9038Q2M high-performance decoder chip, combined with TPA3255 high-power ultra-low distortion amplifier chipset, supports DSD512 and PCM ultra-high-resolution audio, providing users with rich and delicate sound details • 【Hi-Res Audio Speaker Amplifier】AIYIMA A80 Bluetooth Power Amplifier adopts the high performance TPA3255 Class D amplifier chip Max output 300W*2, with Rubycon capacitors, German WIMA capacitors and professional audiophile grade components. It not only ensures high power output, but also realizes a total harmonic distortion (THD) as low as 0.006% and a signal-to-nanometer ratio (SINAD) of 109dB. Providing you with Hifi audio sound • 【Multiple Inputs】Provides a variety of input interfaces, including Bluetooth, USB, optical, coaxial , TRS, covering almost all modern audio source requirements, the TV, Bluetooth devices and high-quality sound system seamlessly connected to match the needs of different scenes and Audio devices • 【Versatile & Flexible】Supports 12V Trigger input, which allows the amplifier to be compatible with various control systems or automation equipment, and can be linked with other home audio equipment, simplifying the operation process and improving the flexibility of the system • 【Wide Range of Uses】A80 Bluetooth Digital Amplifier Output support 3.5MM AUX and RCA, suitable for connecting different types of amplifiers or audio equipment, 3.5mm output connector can be flexibly set up 2.0/2.1-channel home audio receiver system • 【The combination of fashion and retro】with electronic VU display screen design,it offers a variety of display modes, real-time display of input status and volume and other information, especially in playing games, party, etc., to enjoy the classic songs and other scenarios, to show a very good dynamic image effect • 【This A80 DAC Audio Bluetooth Digital Amplifier utilizes PFFB Technology】Unique design and superior performance features combine outstanding parameters and functionality to create one of the best Class D stereo DAC Amp on the market • 【Equipped with a remote control】Easy to operate, can be combined into a powerful hi-fi home audio system, which is suitable for both Hi-Fi music lovers, but also suitable for creating home theater audio equipment users, this AIYIMA A80 mini Class D audio amplifier, compact and exquisite design, with audiophile components, appearance and performance, suitable for home, office and other multi-scene use,Package included DC48V 5A Power Adapter • 【REFINED WITH CUSTOMER SOUND】The AIYIMA A80 Bluetooth Digital DAC Amplifier launched on October 28, 2024.We listened Key insights from user reviews were directly integrated into our this upgraded A80 product.

Chipset: TPA3255D2+QCC3040+NJW1194+SA9137L+ESS9038Q2M+OPA1656+NE5532

Replaceable op-amp chips: RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, OPA1612 and so on.

PC-USB Sampling Rate: PCM:384Khz/32bit DSD256

PC-USB OS: Windows XP / VIsta7/8/10 / Max OS/MAC/Linux

Bluetooth / optical / coaxial sampling rate: 24bit44.1khz / 24bit192khz / 24bit192khz

Bluetooth chip: QCC3040 Bluetooth 5.1 Support: AAC,SBC,aptX,aptX-LL,APTX-HD

Distortion: 0.006%

xlr/rca SNR: ≥ 109dB

High/Low Tone: ±10db

Frequency Response: 20Hz-20KHz (±0.5dB)

RCA input sensitivity: 2Vrms

XLR input sensitivity: 3.6Vrms

Speaker impedance:4-8Ω

Maximum Output Power: 300W*2 (4Ω)

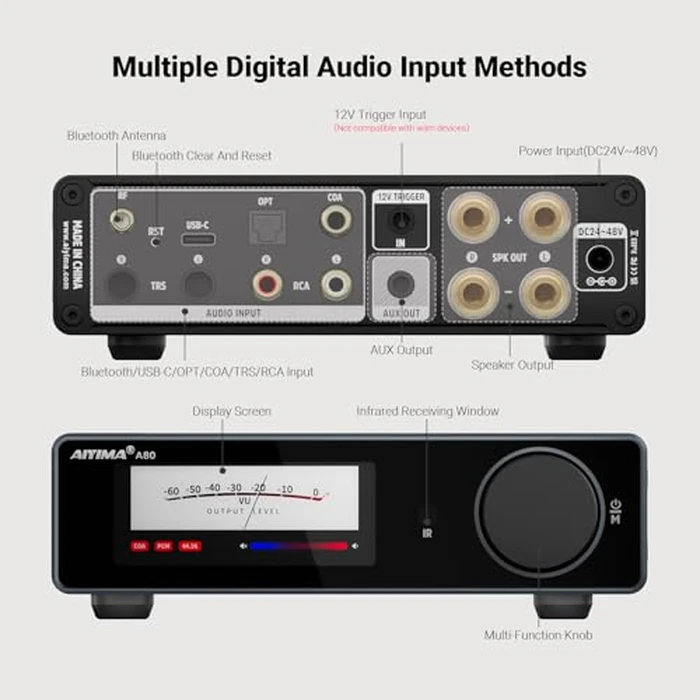

Input Mode: RCA+TRS+PC-usb+OPT+COA+BT

Supported devices: decoder, bilevel preamp, computer, CD, cell phone, MP3, etc.

SUB output sensitivity: 2V

Trigger voltage: 12V

Output Mode: 2.0 passive speaker/active subwoofer

Working power supply: 24-48V

Product size: 155*123*41mm

Package Size: 310*240*70mm

Net weight:850g

Weight with package:1150g(without power supply)

All-in-One DAC Amplifier:Using ES9038Q2M high-performance decoder chip, combined with TPA3255 high-power ultra-low distortion amplifier chipset, supports DSD512 and PCM ultra-high-resolution audio, providing users with rich and delicate sound details

Hi-Res Audio Speaker Amplifier: AIYIMA A80 Bluetooth Power Amplifier adopts the high performance TPA3255 Class D amplifier chip, with Rubycon capacitors, German WIMA capacitors and professional audiophile grade components. It not only ensures high power output, but also realizes a total harmonic distortion (THD) as low as 0.006% and a signal-to-nanometer ratio (SINAD) of 109dB. Providing you with Hifi audio sound

Multiple Inputs:Provides a variety of input interfaces, including Bluetooth, USB, optical, coaxial , TRS, covering almost all modern audio source requirements, the TV, Bluetooth devices and high-quality sound system seamlessly connected to match the needs of different scenes and Audio devices

Versatile & Flexible:Supports 12V Trigger input, which allows the amplifier to be compatible with various control systems or automation equipment, and can be linked with other home audio equipment, simplifying the operation process and improving the flexibility of the system

Wide Range of Uses:Output support 3.5MM AUX and RCA, suitable for connecting different types of amplifiers or audio equipment, 3.5mm output connector can be flexibly set up 2.0/2.1-channel home audio receiver system The combination of fashion and retro, with electronic VU display screen design,can provide 3 different displays to choose from, real-time display of input status and volume and other information, especially in playing games, party, etc., to enjoy the classic songs and other scenarios, to show a very good dynamic image effect

This A80 DAC Audio amplifier utilizes PFFB technology,unique design and superior performance features combine outstanding parameters and functionality to create one of the best Class D stereo DAC Amp on the market

Equipped with a remote control, easy to operate, can be combined into a powerful hi-fi home audio system, which is suitable for both Hi-Fi music lovers, but also suitable for creating home theater audio equipment users, this AIYIMA A80 mini Class D audio amplifier, compact and exquisite design, with audiophile components, appearance and performance, suitable for home, office and other multi-scene use,Package included DC48V 5A Power Adapter
