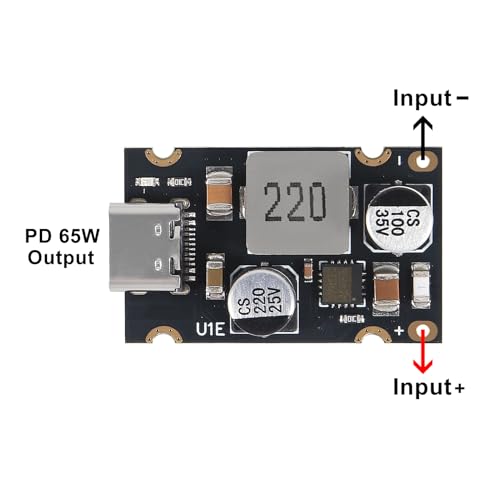

AITRIP 3PCS PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V
Brand: AITRIP
Description
Product temperature rise and output ripple:
Test conditions: Input voltage 24V, ambient temperature 24 ℃, load of a laptop computer that supports PD65W (with approximately 50% battery capacity), and the computer undergoes pressure testing to ensure that the power terminal power reaches 65W.
Parameters:
Input voltage: DC 8-30V
Output voltage: Automatically adjust between 3.3V and 21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, and if 20V fast charging is triggered, input voltage should be higher than 20V)
Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
Maximum output: 20V 3.25A
Conversion efficiency: 92%~97%
Output voltage ripple:<200mV
No-load current:<3mA
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent short circuit protection
Overall over temperature protection
Supported charging protocols: PD3.1 (PPS), QC3.0, SCP
Package: 3PCS PD 65W Fast Charging Module Type-C Interface
