adj WMX1 — Open-Box, 23% Off

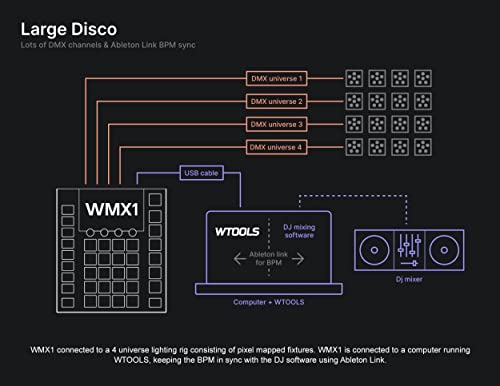

Setup Standalone (no computer needed) Compatible with any DMX device Standard unit comes with 1 DMX universe but up to 3 additional universes are available as add-ons, which are sold via the WTOOLS app. Up to 680 fixtures & beams Up to 50 fixture types Up to 5000 fixture features (color/gobo etc...) 8 fixture groups 6 projects 15000+ available fixtures (3500+ on the controller) DMX address, fixture order & group setup Use as a DMX splitter with DMX universe mapping

Palettes & FX Color FX module with 8 effect types & 16 definable colors Move FX module with 8 effect types Beam FX module with 8 effect types 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke Static color palette with 10 user definable colors per group & gradient control Static position palette with 5 user definable positions per group with fade & fanning Gobo palette with 5 user definable gobos per group 20 namable live edit buttons with flash triggering mode and ‘Park’ function 100 namable presets for storing snapshots with hold and fade timings Preset playback cue list- all presets or per page of 20 presets

Control & Sync Group and master dimming with encoder acceleration Group FLASH, FULL and Blackout 16 bit Pan/Tilt control Multi-beam LED bar control FX music pulse sync from Microphone or Line-In FX BPM sync with Ableton Link, OS2L or BPM TAP Effect Speed, Phase, Order, Size, Fade, Fan & Flick Live control of move FX registration point Global FX speed and freeze control Map DMX IN with group dimmer and patch to output channels* WLINK - sync with another Wolfmix controller

Built-in tools Fixture Builder Fixture calibration tool, to limit the area of moving fixtures X-Y touch controlled positioning grid RGBW touch controlled color picker 8-step real time sequencer for creating beam and move FX Live view of DMX levels with default value override and DMX channel tester Beam Editor to override Min and Max values used in generated FX

Display 4.3” Color TFT with tinted glass Capacitive touch Encoders Full body alloy Incremental push with acceleration Button pads 37 Silicone buttons with matt oil finishing LED color backlit Processing 220Mhz CPU with ARM core 8MB RAM 16MB Flash Audio Omnidirectional electret mic 3.5mm Jack Line-In Analog adaptive peak detector DMX 2x 3pin DMX OUT XLR connectors 1x 5pin DMX OUT XLR connector 1x 5pin DMX IN/OUT XLR connector with WLINK Housing ABS Plastic Powder-coated steel base plate with 100mm VESA (M4 6mm max) Powder-coated steel reinforced back plate Size & weight 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in 1070g / 2.36lb
