8-ch RS485 Hub with RS485 Network Relay, Extension, Isolation Functions, Extend 8-ch RS485 Slave Ports via 1-ch RS485 Master Port, 300~460800bps (Self-Adaptive) Baud Rate, Rail-Mount Support — Open-Box, 19% Off
Brand: waveshare
Condition: Used - VeryGood
$3885
$4799
-19% Save $914
Updated: 27 days ago
Description
【Isolated 8-ch RS485 hub】Extend 8-ch RS485 slave ports via 1-ch RS485 master port, can realize relay, extension and isolation functions of RS485 network, with screw terminal for power input, DC 9~24V power supply

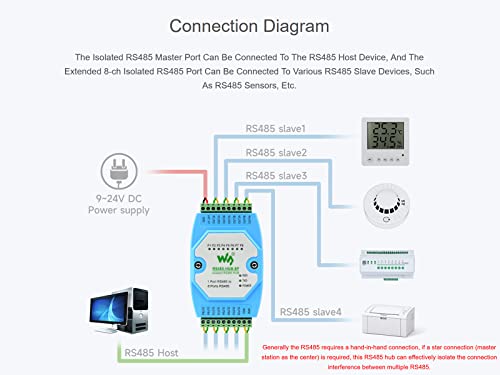

【Connection 】The isolated RS485 master port can be connected to the RS485 host device, and the extended 8-ch isolated RS485 port can be connected to various RS485 slave devices, such as RS485 sensors, etc.
【Industrial isolation protection】Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge
【Wide baud rate range】Supports 300～460800bps wide baud rate communication range (self-adaptive)
【Rail-Mount Support】Supports 35mm standard guide rail, with rail-mount buckle, easy to install
Overview
RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port and can realize relay, extension, and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specification
Interface Standard---Compliant with RS485 Standard
Physical Interface---RS485 Screw Terminal
Baudrate---300~460800bps (self-adaptive)
Supported Nodes---Each RS485 port supports up to 32 nodes
Communication Distance---1200m (9600bps), the higher rate the shorter distance
Operating Method---RS485 two-wire (A, B), half-duplex transparent transmission
Power Supply---DC 9~24V
Operating Temperature--- -45 ~ +85℃
Environment Humidity--- <95%RH
Transmission Medium---Normal parallel cables/twisted-pair cables
Package Content
RS485-HUB-8P x1
(The power supply of this product is not included, please purchase the power supply separately according to your need.)
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port and can realize relay, extension, and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specification
Interface Standard---Compliant with RS485 Standard
Physical Interface---RS485 Screw Terminal
Baudrate---300~460800bps (self-adaptive)
Supported Nodes---Each RS485 port supports up to 32 nodes
Communication Distance---1200m (9600bps), the higher rate the shorter distance
Operating Method---RS485 two-wire (A, B), half-duplex transparent transmission
Power Supply---DC 9~24V
Operating Temperature--- -45 ~ +85℃
Environment Humidity--- <95%RH
Transmission Medium---Normal parallel cables/twisted-pair cables
Package Content
RS485-HUB-8P x1
(The power supply of this product is not included, please purchase the power supply separately according to your need.)
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
