7/8" Pressure Washer Pump Replacement, 2400-2800 PSI, Front Inlet Outlet — Open-Box, 8% Off

Confirm Front-port Compatibility: 2800psi, Max 2.5 GPM rating, 4-7 HP, 196cc to 224cc. Designed for select 2400–2800 PSI gas pressure washers with a 7/8-inch vertical shaft and forward-facing inlet/outlet. Match the shaft length, keyway, mounting holes, pump height and connection direction before ordering.

Restore Up to 2800 PSI Output— Delivers up to 2.5 GPM to help restore cleaning performance when the original pump leaks, pulses, loses pressure or no longer builds pressure.

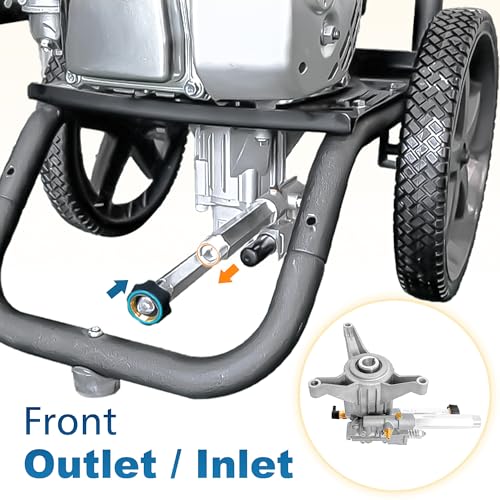

Front-Facing Hose Access — The inlet and high-pressure outlet face forward for pressure washers originally designed with front-side water connections. The configuration keeps the garden hose and pressure hose more accessible during setup and storage.

Bulit for Easier Replacement— Pre-filled oil and the included shaft key help simplify installation. The double-seal system, Easy Start valve, thermal relief valve and built-in unloader support dependable operation and normal pump protection. Comes with Easy start valve (EZ), Thermal relief valve, Unloader & SAE gas engine flange, M22 outlet, Copper Nut 3/4 NH inlet, Keyway Stock.

Select-Model Applications — Designed for select 4–7 HP, 196–224cc vertical-shaft gas pressure washers, including compatible models from Troy-Bilt, Ryobi, Generac, Devilbiss/Excell, Craftsman, Husky and Honda. Verify the exact model and measurements.

Restore the performance of a compatible 2400–2800 PSI gas pressure washer with this EZJOB front-port vertical replacement pump. The pump is designed for select 7/8-inch vertical engine shafts and delivers up to 2.5 GPM. Its front-facing inlet and outlet support pressure washers whose original garden-hose and high-pressure connections are positioned toward the front of the machine. The pressure range is suitable for driveways, patios, decks, siding, fences, vehicles, outdoor furniture and lawn equipment. The pump arrives pre-filled with oil and includes a shaft key. A double-seal system helps reduce leakage, while the Easy Start valve, thermal relief valve and built-in unloader support normal startup and operation. Before ordering, compare the shaft diameter and length, keyway, mounting-hole pattern, pump dimensions, hose-fitting direction and original pressure range. This pump is intended only for compatible vertical-shaft gas pressure washers and is not designed for horizontal-shaft or electric machines. Key Specifications Maximum Pressure: 2800 PSI Maximum Flow Rate: 2.5 GPM Compatible Engine Range: Select 196–224cc, 4–7 HP engines Shaft Type: 7/8-inch vertical shaft Port Direction: Front inlet and front outlet Installation: Pre-filled oil with shaft key
