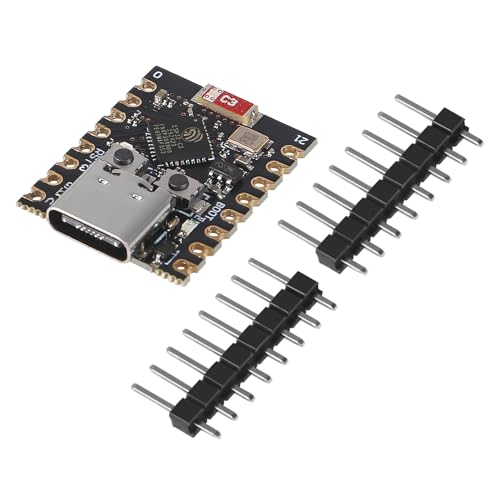

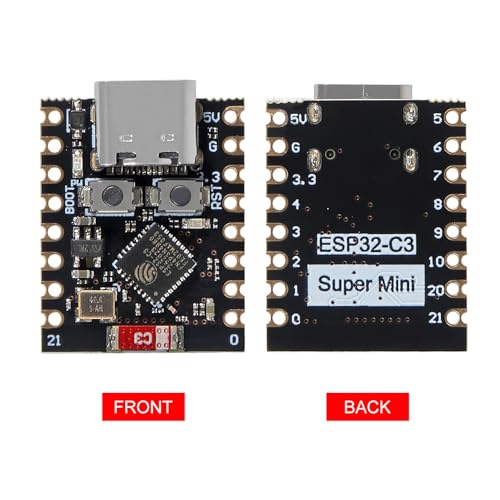

5pcs Type-C ESP32-C3 Development Board ESP32 C3 Mini WiFi Bluetooth 160MHz Running Frequency 2.4GHz Wi-Fi & Bluetooth 5.0 ESP32 C3 Super Mini for Arduino

ESP32-C3 is equipped with a single-core 32-bit RISC-V processor, with a four-level pipeline architecture, with a main frequency of up to 160 MHz. ESP32-C3 has 400 KB of built-in SRAM and 384 KB of ROM storage space. ESP32-C3 is the industry-leading Wi-Fi+Bluetooth LE integrated solution ESP32 C3 Mini is positioned as a high-performance, low-power, cost-effective iot mini development board for low-power iot applications and wireless wearable applications. EPS32-C3 is a cost-effective and low-power dual-mode Wi-Fi and Bluetooth chip. The ESP32-C3 uses a RISC-V processor, a single-core processor with a main frequency of 150 MHz, which integrates Wi-Fi 4 and Bluetooth 5.0 wireless communication. ESP32-C3 is a system-level chip (SoC) MCU with very low power consumption and high integration, which integrates 2.4Ghz Wi-Fi and Bluetooth (Bluttooth) low-end dual-mode wireless communication. consumption. If external power supply is required, just connect the + level of the external power supply to the position of 5V, GND connects to the negative terminal. (Support 3.3 ~ 6V power supply). Remember that when connecting the external power supply, you cannot access USB, USB and external power supply can only choose one.

Overview of Functions:

1. ESP32-C3 is a MCU system-level chip(SoC) with very low power consumption and high integration, integrating 2.4Ghz Wi-Fi and low-power Bluetooth(Bluttooth) dual-mode wireless communication.

2. ESP32-C3 is equipped with RISC-V 32-bit single-core processor, with a four-level pipeline architecture, with a main frequency of up to 160MHz.

3. ESP32-C3 has built-in 400KB SRAM and 384KB ROM storage space.

4. ESP32-C3 is the industry's leading integrated Wi-Fi+Bluetooth LE solution

5.Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz

6.WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+ Station mode, hybrid mode

7.Bluetooth: Bluetooth 5.0

8.Ultra-low power consumption: deep sleep power consumption of about 43μA

8.Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.

10.Chip model: ESP32C3FN4

11.UItra-small size: As small as the thumb (22 52x18mm) classic shape, suitable for wearables and small projects

12.Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC,

digital signatures, and secure startup

13.Rich interface: 1xI2C, 1xSPI, 2xUART, 1 1xGPIO(PWM), 4xADC

14.Single- sided components, surface mount design

15.Onboard LED blue light: GPIO8 pin

16.Support Software Development：-C/C++/ESP-IDF-VSCODE/MICROPHYTHON

Application Scenarios

1. Second development of monitoring, video, photography and other Aolt applications.

2. Wireless communication solutions

Package：5pcs ESP32-C3 Development Board ESP32 Mini WiFi Bluetooth
