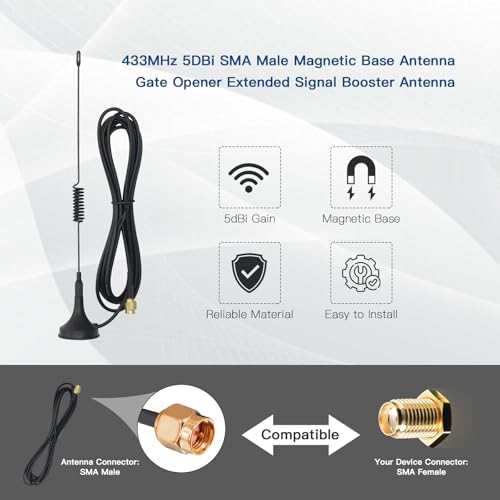

433MHz 5dBi Gain Omni SMA Male Adapter Antenna with Magnetic Base 3M(9.8ft) RG174 Extension Cable for Gate Opener Extended Signal Booster Antenna
Brand: X X-HOUSE
Description
Specifications - Working frequency: 433 MHz; Gain: 5dBi; Impedance: 50 ohm; VSWR: <1.8; Polarization: Vertical; Direction: Omni-directional
Features - Installation: Fixed Wall Mount; Cable Type: RG174 Coaxial Cable; Cable Length: 3M/9.8ft (Easy connection without extension); Antenna Connector: SMA Male(Note: Please make sure that the antenna connector is what you need before purchasing, you can also order other adapters additionally to make it fit your divice)
Application - The antenna can be used to connect with the control board(Please make sure your gate opener device frequency is 433MHz and there is ANT port on the control board). Cut off the SMA Male connector at the end of the cable and strip the wire in order to connect its inner wires to the control board
Function - Improve the coverage of the remote control signal, increase the signal reception and transmission range, ensure that the control range of the remote control is not affected in the case of interference in the environment, and achieve the maximum control distance of the remote control itself, providing a significant gain effect
Flexible Use - Designed with a magnetic base. The 3M antenna extension cable and magnetic base bracket allow you to place the antenna anywhere you need. The antenna can be directly attached to the equipped wall bracket or any iron-containing area you need to place it through the suction cup at the bottom. If you feel it is not firm enough, you can choose to use double sided tape to fix it
Compatibility - Compatible with All Series 433MHz Gate Opener. Compatible with ALEKO, CO-Z, TOPENS, JUJIANG and other 433MHz gate openers!(Make sure there is ANT port on the control board)
Package List: 1 x Gate Opener Antenna (SMA Male), 1 x Wall Bracket, 2 x Self-tapping screws, 1 x Double-sided tape
Product Specifications: Gain: 5dBi; Working Frequency: 433MHz; VSWR: <1.8; Polarization: Vertical; Impedance: 50 ohm; Direction: Omni-directional; Connector Type: SMA Male; Cable Type: RG174 Coaxial Cable; Cable Length: 3M/9.8ft; Feature: Magnetic Mounting Base; Operating Temperature: -30°С ~ +70°С Storage Temperature: -30°С ~ +70°С Package List: 1 x Antenna with magnet base(SMA Male), 1 x Wall Bracket, 2 x Self-tapping screws, 1 x Double-sided tape
