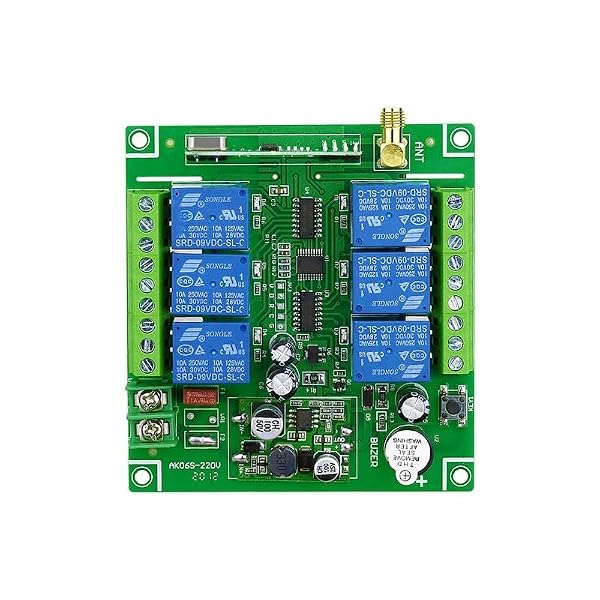

300m DC12V 24V 36V 6CH 6 CH Industrial Wireless Remote Control LED Light Switch Relay Output Radio RF Transmitter 433 MHz Wireless Remote Control LED Light Switch Relay — Open-Box, 23% Off
Brand: Kaleinavi
Condition: Used - VeryGood
$2712
$3540
-23% Save $828
Updated: 43 days ago
Description
wide voltage input: DC12V-36V with 6 working mode, remote distance:300m (in the free field) wireless control, easy to install. The range is about 200-300m in the open air, it can simply pass through walls and so on. But please note: trees, walls or other obstacles will shorten the range.The product has 6 working modes.
Signal stability + dry contact: RF remote control uses RF technology and stable signal. The radio receiver is a relay output/potential free, with NO, NC, COM, （Normally open+Normally closed+Common terminal.
Wireless control, easy to install. Application scenarios, Used in industrial control and security fields: such as lamps, electric doors, winches, motors, lifters, gates, remote controls, etc.
The product has stable performance, and high receiving sensitivity. The product comes with a one-year warranty. If you don't know how to connect the wires, you can contact us and we will assist you.
Package Include
1* Receiver (with cover)
1* Remote Control (with battery, If you need extra remote control, please tell us. )
Feature
1.Working Voltage: 12V --36V (12V 24V 36V all is ok )
2.Quiescent Current: less than 10mA
3.Working Current: 30mA (1 Relay)
4.Working Temperature: -40'C - +80'C
5. Receiving Sensitivity: more than -105dBm
6.Working Frequency: 433MHz
7.Max Load: 10A Relay, Resistive load less than 8A, Inductive load less than 3A
8.PCB Size: 87mm*92.6mm*16.4mm
9.Case Size: 90*115*40mm
explanation working modes
Momentary: Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D
Toggle: Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D
Latched:Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF.... Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF
set working mode:Working way changed by Learning button
A. 1-6CH Momentary-----Press Transmitter Button “1”to learn
B. 1-6CH Latched----- Press Transmitter Button “2” to learn
C. 1-6CH Toggle-- -- Press Transmitter Button “3” to learn
D. 1-3CH Momentary, 4-6CH Toggle------Press Transmitter Button “4” to learn
E. 1-3CH Momentary, 4-6CH Latched------ Press Transmitter Button “5” to learn
F. 1-3CH Latched, 4-6CH Toggle------- Press Transmitter Button “6” to learn
Learning way and steps
1. Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning
2. Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound. The receiver automatically exits learning state if you do nothing in 32 seconds.
Delete memory message (Must clear the code before you learn different button )
Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be “ (please do not wait for it Be for 6 sounds) then release the button , indicate success to delete the memory message.
1* Receiver (with cover)
1* Remote Control (with battery, If you need extra remote control, please tell us. )
Feature
1.Working Voltage: 12V --36V (12V 24V 36V all is ok )
2.Quiescent Current: less than 10mA
3.Working Current: 30mA (1 Relay)
4.Working Temperature: -40'C - +80'C
5. Receiving Sensitivity: more than -105dBm
6.Working Frequency: 433MHz
7.Max Load: 10A Relay, Resistive load less than 8A, Inductive load less than 3A
8.PCB Size: 87mm*92.6mm*16.4mm
9.Case Size: 90*115*40mm
explanation working modes
Momentary: Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D
Toggle: Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D
Latched:Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF.... Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF
set working mode:Working way changed by Learning button
A. 1-6CH Momentary-----Press Transmitter Button “1”to learn
B. 1-6CH Latched----- Press Transmitter Button “2” to learn
C. 1-6CH Toggle-- -- Press Transmitter Button “3” to learn
D. 1-3CH Momentary, 4-6CH Toggle------Press Transmitter Button “4” to learn
E. 1-3CH Momentary, 4-6CH Latched------ Press Transmitter Button “5” to learn
F. 1-3CH Latched, 4-6CH Toggle------- Press Transmitter Button “6” to learn
Learning way and steps
1. Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning
2. Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound. The receiver automatically exits learning state if you do nothing in 32 seconds.
Delete memory message (Must clear the code before you learn different button )
Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be “ (please do not wait for it Be for 6 sounds) then release the button , indicate success to delete the memory message.
