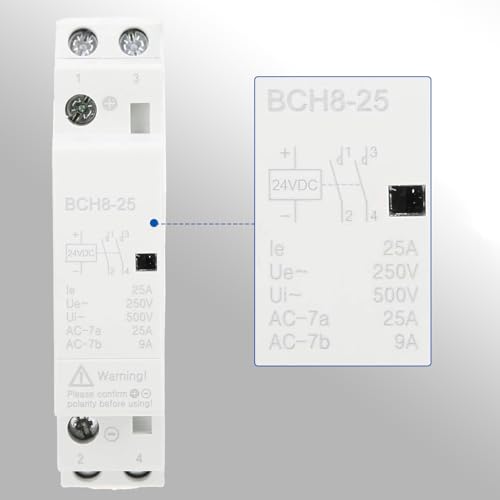

25A 24V DC Voltage Contactor, BCH8-25 2NO DC Modular Contactor Switch DIN Rail Mount for Intelligent Control System — Open-Box, 29% Off
Brand: Hapivida
Condition: Used - Mint
$1104
$1549
-29% Save $445
Updated: 3 days ago
Description
Mainly Used - 25A BCH8-25 2NO DC voltage contactor is used to eliminate the impact sound of the traditional contactor at the moment of closing, and eliminate the low‑frequency buzzing sound of the contactor during operation.
Applicable Range - This DC voltage contactor is suitable for most building electrical fields, especially the AC and DC series achieves no noise and creates an extremely quiet environment for you.
Durable - Long electrical life, this contactor has been tested and verified and can withstand 100,000 full‑load switching times under AC‑a load category. Can be used for intelligent control system.
Energy Saving - The optimized system greatly reduces the holding power of the contactor to save energy. Used in homes, hotels, apartments and other places to achieve automation functions.
Space Saving - The width of the contactor is much smaller than that of the traditional contactor, which saves the user's installation space and can be easily installed in the ordinary distribution box.
Specification:
Item Type: DC Voltage Contactor
Rated Voltage (Ue): 250VAC
Rated Current: 25A
Frequency: 50/60Hz
Mechanical Life (O-C): 1000000 times
Electrical Life: 100,000 times
Maximum Number of Switch Operations Per Day: 100
Insulation Voltage (U): 500VAC
Pollution Degree: 2
Rated Impulse Withstand Voltage (Uimp): 2.5kV (4kV at 12/24/48VAC)
Protection Class of Contactor Body: IP20
Installed In Distribution Box, Protection Level: IP40
(IEC 60529)
Working Temperature: -5℃-+60℃
Storage Temperature: -40℃-+70℃
Humidity and heat resistance (IEC60068.1)
Class 2 (when the temperature is 55℃, the relative humidity is 95%)
ELSV (Extra Low Safety Voltage) conforms to the 12/24/48VAC version
Product control meets the requirements of SELV (Safety Extra Low Voltage)
Scope of Application:
1.BCH8 series of household contactors (hereinafter referred to as contactors) are mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated working current to 100A circuits, to control low-inductance and micro-inductive loads of household appliances and similar purposes; also available To control the load of the household motor, the control power should be reduced accordingly.
2.Products are used in homes, hotels, apartments and other places to achieve automation functions and are used in mass-produced household appliances.
3.Meet The Standards: GB/T 17885, IEC/EN61095
Size: Approx.
18mm / 0.7in; 36mm / 1.4in; 68mm / 2.7in;
49mm / 1.9in; 5.5mm / 0.2in ;23.5mm / 0.9in;
81mm / 3.2in; 4mm / 0.2in; 45mm / 1.8in
Package List:
1 x DC Voltage Contactor
Note:
When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation
Item Type: DC Voltage Contactor
Rated Voltage (Ue): 250VAC
Rated Current: 25A
Frequency: 50/60Hz
Mechanical Life (O-C): 1000000 times
Electrical Life: 100,000 times
Maximum Number of Switch Operations Per Day: 100
Insulation Voltage (U): 500VAC
Pollution Degree: 2
Rated Impulse Withstand Voltage (Uimp): 2.5kV (4kV at 12/24/48VAC)
Protection Class of Contactor Body: IP20
Installed In Distribution Box, Protection Level: IP40
(IEC 60529)
Working Temperature: -5℃-+60℃
Storage Temperature: -40℃-+70℃
Humidity and heat resistance (IEC60068.1)
Class 2 (when the temperature is 55℃, the relative humidity is 95%)
ELSV (Extra Low Safety Voltage) conforms to the 12/24/48VAC version
Product control meets the requirements of SELV (Safety Extra Low Voltage)
Scope of Application:
1.BCH8 series of household contactors (hereinafter referred to as contactors) are mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated working current to 100A circuits, to control low-inductance and micro-inductive loads of household appliances and similar purposes; also available To control the load of the household motor, the control power should be reduced accordingly.
2.Products are used in homes, hotels, apartments and other places to achieve automation functions and are used in mass-produced household appliances.
3.Meet The Standards: GB/T 17885, IEC/EN61095
Size: Approx.
18mm / 0.7in; 36mm / 1.4in; 68mm / 2.7in;
49mm / 1.9in; 5.5mm / 0.2in ;23.5mm / 0.9in;
81mm / 3.2in; 4mm / 0.2in; 45mm / 1.8in
Package List:
1 x DC Voltage Contactor
Note:
When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation
