1 Inch Ball Valve, Heavy Duty Male NPT (MNPT) X Female NPT (FNPT) Thread with Long Handle Switch, 304 Stainless Steel NPT Full Port Forged 1" Ball Valve for Water Oil and Gas, 1000 WOG (1 Piece)

Quality Materials: Full Port Heavy Duty 1" Ball Valve is made of high quality 304 stainless steel, lead free, Safer and stronger, long lifetime. It is the ideal plug valve for high quality shut- off valves in industry or in the home and garden. Good sealing: It has two sealing surfaces with good sealing performance and can achieve complete sealing. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes. Suitable for a variety of media: The high-quality stainless steel ball valve is suitable for water, sea water, air, oil, and steam media with a temperature of -10 ℃～120℃.Since the ball valve has wiping properties during opening and closing, it can be used in media with suspended solid particles. Convenient operation: This high pressure 1 inch ball valve has a comfortable operating handle, which opens and closes quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for quick control. When the handle is parallel to the pipe body, it is in an open state, and when it is vertical, it is in a closed state, so it is more convenient to observe whether the valve is open. Widely used: Ball valves are widely used in gardens, water pumps, corner rainwater tanks, external taps, rainwater connections with buckets, rainwater collectors, water pipes, etc. Also can be used for mechanical equipment, industrial equipment, water supply and drainage equipment.

Features:

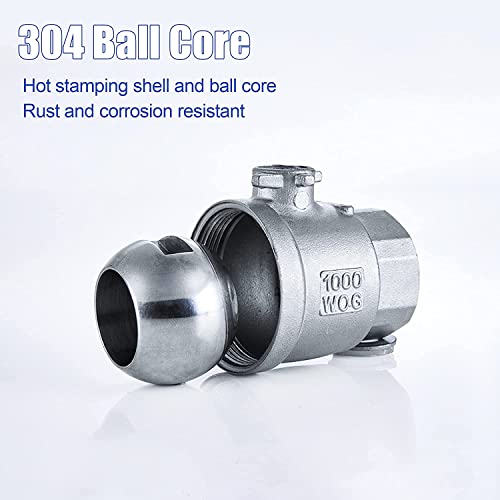

The 304 stainless steel ball valve is rust-proof, durable, corrosion-resistant and has a long service life.

High temperature resistance, suitable for a variety of media. Widely used in home and industry.

The operating handle is forged with high strength and can maintain good performance even after repeated use.

Parameter:

Name: Male x female threaded ball valve 1 inch

Link method: Male to female

Material: Heavy duty 304 Stainless Steel

Range of use: Water, oil, gas, oxygen

Working temperature：-10℃-120℃

Suitable fluid: Water

Pressure rating: 1000 WOG

Nominal Diameter: DN25 (1" BSP)

Weight: 470g

Packing list:

1 x 1" male to female NPT ball valve（MNPTxFNPT）

Note：

Because of the importance of the ball valve in the work, our preset handle is all tightened, and it takes some strength to rotate. If it is difficult to rotate the handle for you, it is suggested that you can adjust the screw cap on the upper part of the handle properly, which can help you solve this problem effectively.

Please confirm that the thread connection of the pipe you need is 1inch NPT male to female thread before purchase. This is the product we provide.
