maXpeedingrods 8 Inch 3 Jaw Lathe Chuck Self-Centering Milling K11-200A — Open-Box, 14% Off

Application: The chuck is suitable for General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc. Material: Hardened Steel Internal And External Jaw: Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35"). Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87") .External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87") Main Parameter: Size: Outside Diameter: 200 mm (7.9"). Bolt Circle Diameter: 180 mm (7.08"). Center Thru Hole Diameter: 65 mm (2.559"). Chuck Body Thickness: 75 mm (2.95") Package Contents: 1 x Three Jaw Self Centering Chuck,3 x Bolts Circle,1 x Handle

This product is an imported product, please note that import handling fees and customs duties are not included in the product price

Applications
for general lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories

Specifications
Material: Hardened Steel
Model: K11-200A
Jaw: 3 Jaw
High precision: ≤0.05mm
Application: for CNC Drilling Milling Machine

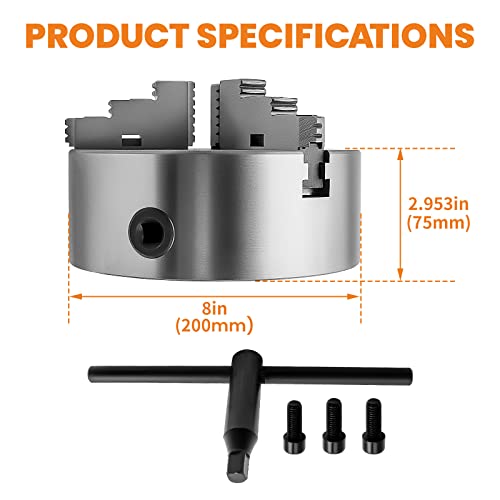

Lathe Chuck Specifications
Size: 200 mm (7.9")
Outside Diameter: 200 mm (7.9")
Bolt Circle Diameter: 180 mm (7.08")
Center Thru Hole Diameter: 65 mm (2.559")
Chuck Body Thickness: 75 mm (2.95")
Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35")
Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87")
External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87")
Mounting Thread: 3-M10
Accuracy: 0.002"

Package Contents
1 x Three Jaw Self Centering Chuck
3 x Bolts Circle
1 x Handle

Notes
* No instruction included and professional installation recommended
