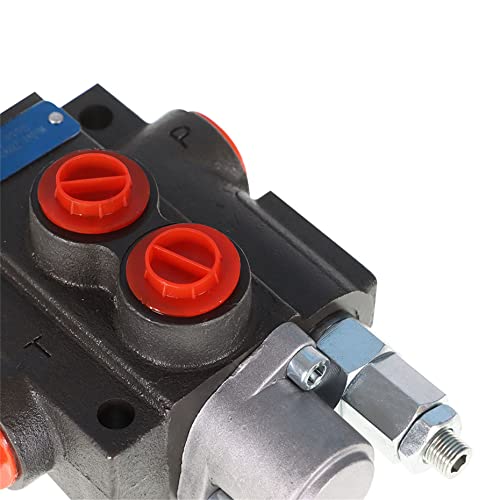

kimllier 1 Spool Hydraulic Valve 13GPM 3600PSI Hydraulic Directional Control Valve Double Acting Valve

This loader control valve come with 1 spools, with cast iron construction for long-time use. The relief valve range is up to 3600PSI and the maximum flow is up to 13GPM, double acting cylinder. The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system. Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral place. There are springs at the bottom of the handles that make the joysticks easy to control. Fit for small tractors, tractors loaders, log splitters, and etc.

1 Spool Hydraulic Valve 13GPM 3600PSI Hydraulic Directional Control Valve Double Acting Valve

Features:

Durable cast iron construction provides long-term usage.

The relief valve range can reach up to 3600PSI and the maximum flow is up to 13GPM.

All spools are standard double acting with spring return to neutral place which are ideal for double acting cylinders.

Used for small tractors, tractors loaders, log splitters and other mobile.

Specification:

A/B ports: SAE10(7/8-14)

P/T/N port: SAE10(7/8-14)

Max Operating Pressure: 3600PSI

Nominal flow: 13GPM

Relief valve: Adjustable

Center System: Open

Package Includes:

1 x 1 Spool 13GPM Hydraulic Directional Control Valve
