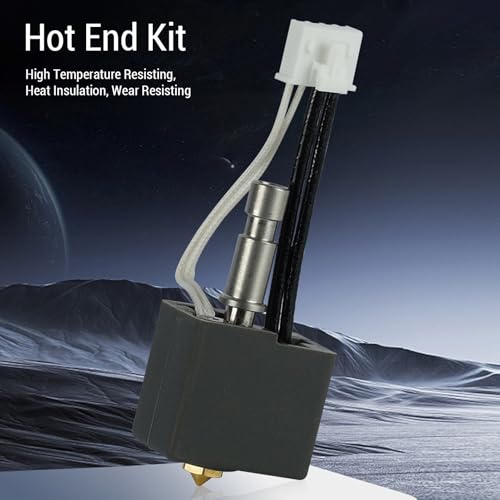

Hotend Kit for 3D Printer Nozzle Hardened Steel High Speed Printing with Silicone Sleeves for S1 Extruder Accessories

High Temperature Resistances: All metal structure withstands up to 320℃, supporting blazing fast printing speeds of 600 mm/s for professional results. Fully Compatible: Specifically designed for s1 3d printers, ensuring seamless integration and exceptional performance. Easy Installation: Pre-installed heating tube, thermistor, and nozzles for effortless setup, just replace and recalibrate for optimal performance. Wide Material Compatibility: Suitable for pla, abs, petg, tpu, and wood filaments, offering versatile printing options. Versatile Nozzle Options: Includes 4 hardened steel nozzles (0.2mm, 0.4mm, 0.6mm, 0.8mm) catering to various printing needs with accuracy.

Spec:
Item Type: Hotend Kit
Material: Hardened Steel, Metal, Silicone
Nozzle Temperature: 320℃
Recommended Speed: 300mm/s
Nozzle Diameter: 0.2mm, 0.4mm, 0.6mm, 0.8mm
Maximum Speed: 600mm/s
Support Materials: PLA, PETG, TPU, ABS, ASA
Maximum Acceleration: 20000mm/s²
Applicable Model: For S1, for S1 Combo Fused Deposition Modeling 3D Printer

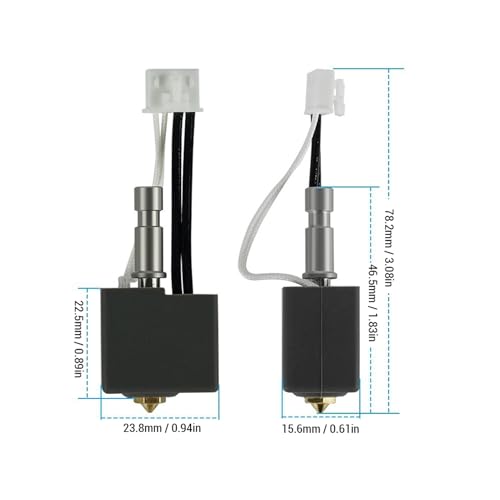

Hotend Size: Approx. 23.8 x 15.6 x 78.2mm / 0.94 x 0.61 x 3.08in

Package List:
1 x Hotend Kit
4 x Nozzles
2 x Silicone Sleeves

How To Use:
Direct installation and use

Note

1. Nozzle tightening: Use a special wrench to gently turn the nozzle clockwise, with the torque controlled within 1.5 to 2 N·m. Do not tighten it too tightly to prevent thread loosening, heating block cracking, and nozzle deformation. Do not loosen it too much to avoid material leakage and clearance blockage.
2. When operating components that involve heating, be extremely careful of the high temperature and do not touch the heating blocks and nozzles with your hands.
3. Cable inspection: After the first power-on, closely observe for any smoke, unusual odors or abnormal overheating. If any abnormalities are detected, immediately cut off the power and conduct an inspection.
4. When printing for the first time, it is recommended to use PLA consumables. You can print a simple test block or temperature tower to check the inter-layer adhesion, extrusion uniformity and surface quality.
5. The advantage of the hardened steel nozzle is that it can print wear-resistant consumables filled with carbon fibers, glass fibers, metal powders, etc. However, its thermal conductivity is slightly lower than that of copper. When printing ordinary PLA/PETG, a printing temperature that is 5-10°C higher than the original may be required. Please determine the optimal temperature through the temperature tower test.
