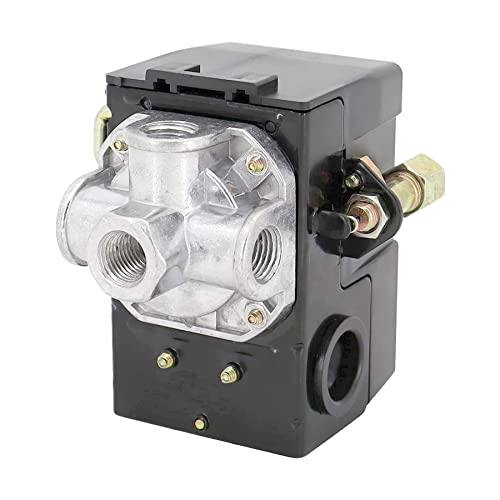

Heavy Duty Air Compressor Pressure Switch Control 90-125 psi Single Port, 26A Replaces
Brand: Huivlei
Condition: Used
$1670
$1920
-14% Save $250
Updated: 3 days ago
Description
【Durable and Reliable Design】: Heavy duty 26A contacts ensure a long-lasting performance in demanding applications.
【Easy Installation】: Single port connection manifold makes it easy to install and convenient to use with your air compressor.
【Compatible with 90-125 PSI Air Compressors】: This pressure switch is designed to work efficiently with air compressors in the specified pressure range.
【High-Quality Material】: Made of corrosion-resistant material for a long mechanical life, ensuring reliable operation for years to come.
【Customer Support】: Our customer service team is always ready to help with any questions or concerns, providing responsive and helpful assistance.
About Our Product:
1.Introducing the Heavy Duty pressure switch, designed for small, electrically driven air compressors. This switch can regulate tank pressure between two preset values and is suitable for single or two stage compressors with an amperage of less than 26 amps on 120 volt or 12 amps on 240 volt. It comes equipped with a 1/4" plastic or copper line that runs to the check valve or head of the compressor for added convenience.
2.For easy mounting of valves and gauges, this pressure switch also features a four-port manifold. Additionally, the Heavy Duty switch is available with an unloader valve to prevent the compressor from starting underload.
3.To adjust the pressure settings, simply turn the switch clockwise to increase both cut-out and cut-in pressure, or turn clockwise to increase cut-out pressure without affecting cut-in.(lease refer to the instruction image for details.)
4.Trust the Heavy Duty pressure switch for its reliability and ease of use. Upgrade your air compressor today with this top-of-the-line product.
Item Details:
Default On(Cut-in) pressure: 90PSI
Default Off(Cut-out) pressure: 120PSI
Cut-out & Cut-in pressure is adjustable
Min On(Cut-in) pressure: 35PSI
MAX Off(Cut-out) pressure: 150PSI
DIFFERENTIAL: 30-40PSI
POLE: 2 POLE RATING
SINGLE PHASE RATING:26amps at 120V AC / 12amps at 240V AC
THREE PHASE RATING:9.6amps at 240VAC
Maximum Voltage: 240VAC
PORT: 1/4" NPT Single Female Port
With a ON/OFF switch lever
With a unloader
Item Includes:
1X 90-120 PSI 1 port air compressor pressure control switch
1.Introducing the Heavy Duty pressure switch, designed for small, electrically driven air compressors. This switch can regulate tank pressure between two preset values and is suitable for single or two stage compressors with an amperage of less than 26 amps on 120 volt or 12 amps on 240 volt. It comes equipped with a 1/4" plastic or copper line that runs to the check valve or head of the compressor for added convenience.
2.For easy mounting of valves and gauges, this pressure switch also features a four-port manifold. Additionally, the Heavy Duty switch is available with an unloader valve to prevent the compressor from starting underload.
3.To adjust the pressure settings, simply turn the switch clockwise to increase both cut-out and cut-in pressure, or turn clockwise to increase cut-out pressure without affecting cut-in.(lease refer to the instruction image for details.)
4.Trust the Heavy Duty pressure switch for its reliability and ease of use. Upgrade your air compressor today with this top-of-the-line product.
Item Details:
Default On(Cut-in) pressure: 90PSI
Default Off(Cut-out) pressure: 120PSI
Cut-out & Cut-in pressure is adjustable
Min On(Cut-in) pressure: 35PSI
MAX Off(Cut-out) pressure: 150PSI
DIFFERENTIAL: 30-40PSI
POLE: 2 POLE RATING
SINGLE PHASE RATING:26amps at 120V AC / 12amps at 240V AC
THREE PHASE RATING:9.6amps at 240VAC
Maximum Voltage: 240VAC
PORT: 1/4" NPT Single Female Port
With a ON/OFF switch lever
With a unloader
Item Includes:
1X 90-120 PSI 1 port air compressor pressure control switch
