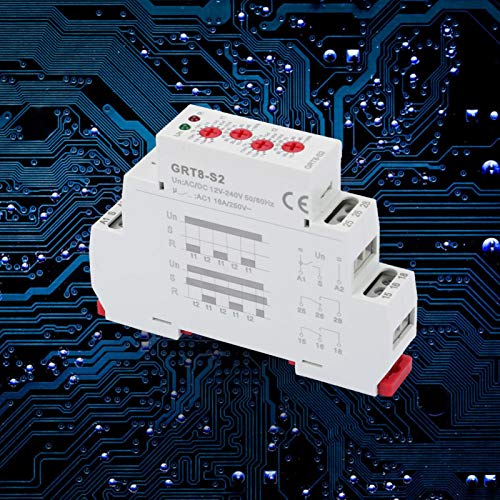

Cycle Timer Relay, Cycle Time Relay, GRT8-S2 Mini Asymmetric Cycle Timer ON/Off Repeat Cycle Time Relay AC/DC 12-240V — Open-Box, 30% Off

👍 Professional design: The delay ON and OFF time settings of the cycle timer relay are separate, so you can set different delay times. This Cycle Timer Relay will be a good auxiliary tool when you use, the Cycle Timer Relay will make your life more convenient 👍 Practical: The Cycle Timer Relay has an ultra-wide delay time range, which can be set from 0.1 second to 100 days (10 selections). Believe that our Cycle Timer Relay can meet your daily life and work needs 👍 Working mode: The cycle time relay switches between different working modes by short-circuiting S-A1. And we are sure that the feature of the cycle time relay will draw your attention 👍 Easy to install: Cycle Timer Relay has small size, this repetitive cycle timer relay can be installed on a 35mm DIN rail. This Cycle Timer Relay will be a good auxiliary tool when you use, the Cycle Timer Relay will make your life more convenient 👍 Application: Repetitive cycle time relay is used for periodic delay control occasions to provide periodic energization, lighting control and heating control for the circuit. This is a good choice when you use this cycle time relay in life. Believe that our cycle time relay can meet your daily life and work needs

Features:

1. The delay ON and OFF time settings of the cycle timer relay are separate, so you can set different delay times

2. The cycle timer has an ultra-wide delay time range, which can be set from 0.1 second to 100 days (10 selections)

3. The cycle time relay switches between different working modes by short-circuiting S-A1

4. Relay working status is indicated by LED indicators



Specification:

Model: GRT8-S2

Rated supply voltage: AC/DC 12-240V(50-60Hz)

Power consumption: AC 0.09-3VA / DC 0.05-1.7W

Delay time range: 0.1s-100days, NO, NC

Setting method: knob

Setting accuracy: 10%

Repeated accuracy: 0.2%

Temperature fluctuation error: 0.05%/℃, at = 20℃

Output contact: 2 x SPDT, 2 x 16A/AC1

Minimum switching power: 500mW

Power indicator: Green LED

Output relay indication: Red LED

Mechanical life: 1x107

Electrical life: 1x106

Reset time: Max 200ms

Working temperature: -20℃~55℃

Storage temperature: -35℃~75℃

Mounting method: 35mm DIN rail

Protection grade: IP20

Wiring capability: 1x2.5mm2 or 2x1.5mm2

Dimensions: 90*18*64mm / 3.54*0.71*2.52in

Package weight: Approx. 96g/3.4oz



PackageList:

1 * Cycle Timer Relay



Note:

1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2. Please allow slight error due to manual measurement. Thanks for your understanding.
