ATOPLEE Electronic Lock, 1pcs DC 12V 2A Carbon Steel Solenoid Cabinet Spring Lock for Drawer Locker (63X50X13mm) — Open-Box, 33% Off

【WIDE APLLICATION】The electronic lock needs to be used with an additional control circuit board. This lock is widely used in storage cabinets, mailboxes, logistics cabinets, filing cabinets, vending machines, shoe cabinets, etc. Usually used in schools, community service stations, hotels, factories, supermarkets and other places.

【GOOD MATERIAL】The outer shell is made of steel plate, and the internal parts are made of carbon steel. Will not deform and will not rust easily.

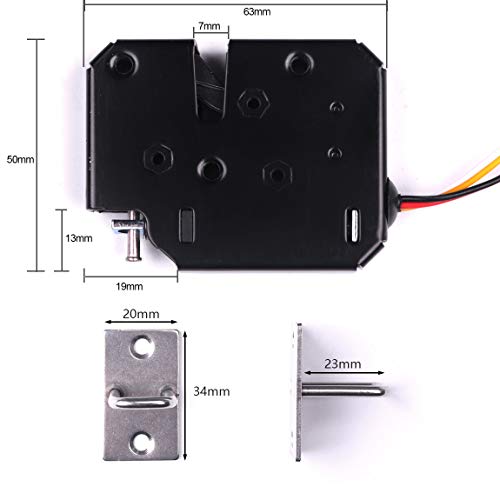

【SIZE】 63 * 50 * 13mm. Electrical parameters: DC12V, 2A. The duration of a single unlock signal does not exceed 0.2 seconds (to avoid electromagnet damage).

【DESIGN】The working mode of the lock is that it is not energized when it is locked, and the door is open after it is energized. K01 can detect the open or close of the door.

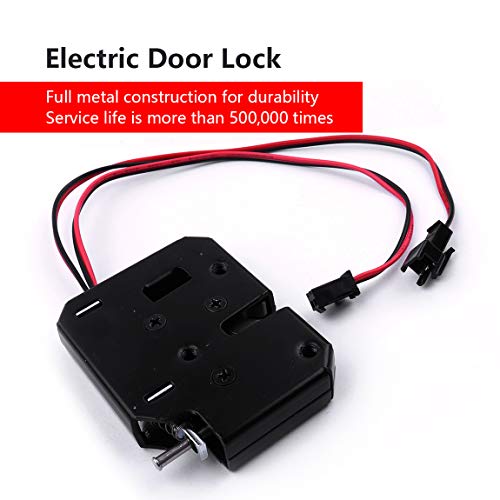

【LONG PRODUCT LIFE】under normal use, no less than 500,000 times.

【PRODUCT INCLUDED】1pc 12v 2A solenoid cabinet spring lock.

Features: Loading capacity:Can open lee than 4kg heavy door Use and installation instructions: 1. This type of lock is mainly composed of lock body and lock. When installing, please pay attention to adjust the position of lock and keyhole. It is better to be free and flexible. 2. Red and black wires are the power cord of electromagnetic lock. Negative electrode, input voltage is 12V, current 2A; Remarks: This electromagnetic lock adopts the trigger type structure. When the energized electromagnet pulls the pull rod and starts the torsion spring, the lock and the door are opened by the force of the torsion spring. After the pop-up is energized, it is a waste, so it is recommended that each customer place a single The duration of the power-on time is set within 0.5 seconds, so the performance of the electromagnetic lock is more stable and power is saved. Note: After the electromagnetic lock is powered on, it will generate heat. When the generated heat is greater than the amount of heat emitted, the temperature will continue to rise. When the temperature rises to a certain temperature, the copper coil will not be able to withstand, the electromagnetic lock will be burned out , So try to make the small electromagnetic lock when a single power-up time, unlock the interval as long as possible in order to extend the life of the electromagnetic lock. Note: The electromagnetic lock uses a trigger structure, recommended to set the Power-on time: no more than 0.2 seconds, the performance of the lock is more stable and saves electricity , and avoiding the lock to be burned out.
