ALLOYWORKS 3 Row Full Aluminum Radiator + 2X12" Fans Shroud + Relay For 1977-1987 Chevy Nova C/K/G/P 10 20 30 40, Buick Century Skylark1977-1980 GMC C/K/G 15 25 35 1500 2500 3500 Suburban Radiators

• ■ [Applications] Direct replacement for Chevy Nova 75-79 / Chevy Camaro 70-80；for Chevy Monte Carlo 83-87/Oldsmobile Cutlass 78-88；for Chevy Blazer 1973-1985/Suburban 1976-1980；for Chevy El Camino 78-1987/ Impala 1980-1985；for Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985. • ■ [Dimensions] Core Size: 17" H x 26-1/4" W; Overall Size:18-1/4" H x 31-5/8" W; Upper Inlet:1-1/2" located on the Driver side; Lower Outlet:1-1/2" located on the Passenger side. • ■ [Premium Aluminum Radiator] The radiator is made of Aircraft AA5052 aluminum, constructed with 100% welded seams, brazed core technology and no epoxy. Direct fit and built to last long with high quality aluminum core. • ■ [Higher Density Core] Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators sold on Amazon. 14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators. It provides 30% more cooling capacity than a standard radiator. • ■ [Strict Production Process] All radiator have to go through 5 checks in the whole process. Each radaitor will be pressure tested before delivery to ensure no leakage. Thickened packing(either carton or wooden box), foam with shock absorption. • ■ [Easy To Install] Brand-new radiator engineered and manufactured to meet original specifications for quick installation. CNC turret punch machine ensure the accuracy of radiator size. No Drilling or Modifications Needed for Installation. • ■ Please use Amazon's vehicle fitment tool to confirm that the part is correct for your vehicle application before buy.

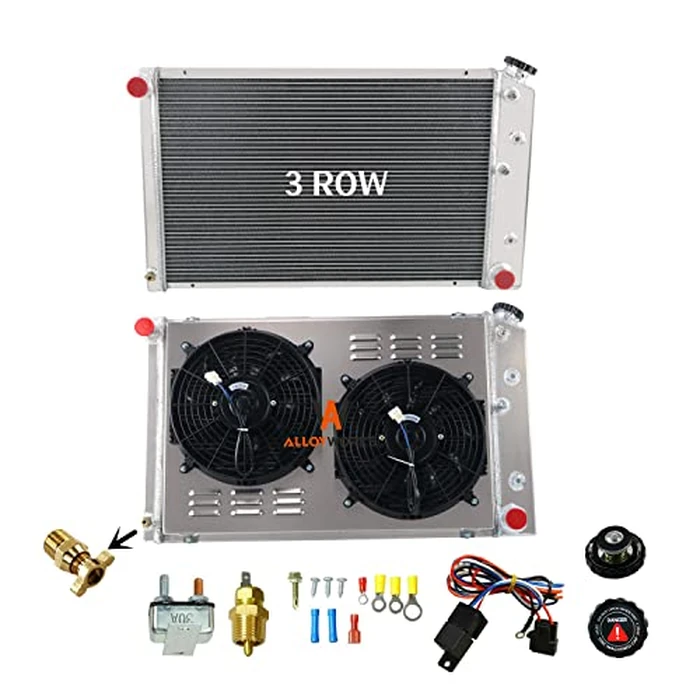

ALLOYWORKS 3 Row of Tubes Core Racing Design, Complete Radiator with 2 X 12" Fans(Includes mounting kits), 1 X AA5052 Aluminum Shroud,1 X Thermostat Relay Kit will be your Best Choice!

Note: FIT 26 1/4" WIDE CORE ONLY

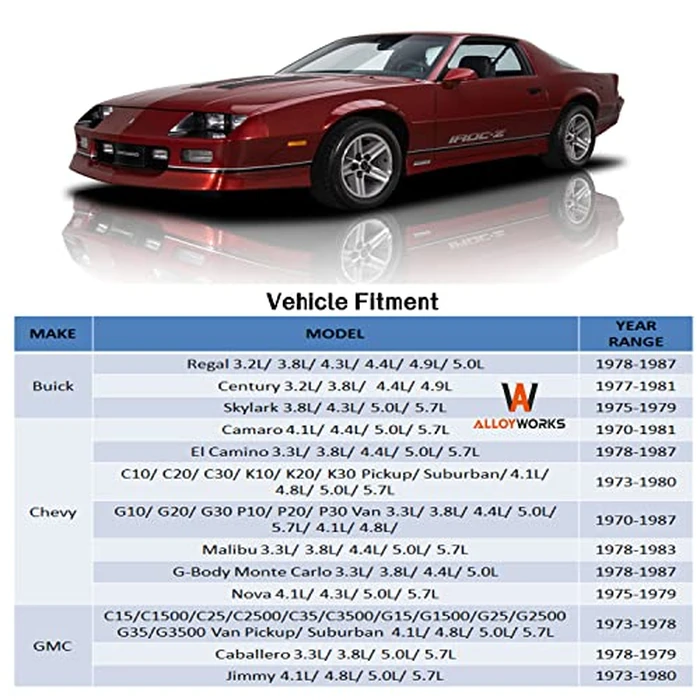

Vehicle Fitment:

For Buick Radiator

For 1975 Buick Apollo 4.3L/ 5.7L

For 1977-1981 Buick Century 3.2L/ 3.8L/ 4.4L/ 4.9L

For 1977-1979 Buick Estate Wagon 5.7L

For 1980 Buick LeSabre 4.9L

For 1978-1987 Buick Regal 3.2L/ 3.8L/ 4.3L/ 4.4L/ 4.9L/ 5.0L

For 1975-1979 Buick Skylark 3.8L/ 4.3L/ 5.0L/ 5.7L

For Chevy Radiator

For 1973-1974 Chevy Blazer 4.1L/ 4.8L

For 1975-1980 Chevy C10 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1973-1974 Chevy C10 Pickup 4.1L/ 4.8L

For 1976-1980 Chevy C10 Suburban 5.0L/ 5.7L

For 1975-1980 Chevy C20 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1973-1974 Chevy C20 Pickup 4.1L/ 4.8L

For 1976-1980 Chevy C20 Suburban 5.0L/ 5.7L

For 1975-1980 Chevy C30 4.1L/ 4.8L/ 5.7L

For 1973-1974 Chevy C30 Pickup 4.1L/ 4.8L

For 1970-1981 Chevy Camaro 4.1L/ 4.4L/ 5.0L/ 5.7L

For 1980-1986 Chevy Caprice 5.0L/ 5.7L

For 1978-1987 Chevy El Camino 3.3L/ 3.8L/ 4.4L/ 5.0L/ 5.7L

For 1975-1980 Chevy G10 4.1L/ 5.0L

For 1972-1974 Chevy G10/ G20/ G30 Van 4.1L

For 1975-1980 Chevy G20 4.1L/ 4.8L/ 5.0L

For 1975-1979 Chevy G30 4.1L/ 4.8L

For 1980-1985 Chevy Impala 5.0L/ 5.7L

For 1975-1980 Chevy K10 4.1L/ 4.8L/ 5.7L

For 1973-1974 Chevy K10 Pickup 4.1L

For 1976-1980 Chevy K10 Suburban 5.0L/ 5.7L

For 1975-1980 Chevy K20 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1973-1974 Chevy K20 Pickup 4.1L/ 4.8L

For 1976-1980 Chevy K20 Suburban 5.0L/ 5.7L

For 1977-1980 Chevy K30 4.8L/ 5.7L

For 1973-1974 Chevy K30 Pickup 4.1L/ 4.8L

For 1975-1980 Chevy K5 Blazer 4.1L/ 5.0L/ 5.7L

For 1978-1983 Chevy Malibu 3.3L/ 3.8L/ 4.4L/ 5.0L/ 5.7L

For 1978-1987 Chevy G-Body Monte Carlo 3.3L/ 3.8L/ 4.4L/ 5.0L

For 1975-1979 Chevy Nova 4.1L/ 4.3L/ 5.0L/ 5.7L

For 1975-1980 Chevy P10 4.8L

For 1973-1974 Chevy P10/ P20/ P30 Van 4.1L

For 1975-1980 Chevy P20/ P30 4.8L

For 1973-1974 Chevy P20/ P30 Van 4.8L

For GMC Radiator

For 1975-1978 GMC C15 4.1L/ 4.8L

For 1976-1978 GMC C15 Suburban 5.0L/ 5.7L

For 1973-1974 GMC C15/C1500 Pickup 4.1L/ 4.8L

For 1979-1980 GMC C1500 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1979-1980 GMC C1500 Suburban 5.0L/ 5.7L

For 1975-1978 GMC C25 4.1L/ 4.8L

For 1976-1978 GMC C25 Suburban 5.0L/ 5.7L

For 1973-1974 GMC C25/C2500 Pickup 4.1L/ 4.8L

For 1979-1980 GMC C2500 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1979-1980 GMC C2500 Suburban 5.7L

For 1975-1978 GMC C35 4.1L/ 4.8L

For 1973-1974 GMC C35/C3500 Pickup 4.1L/ 4.8L

For 1979 GMC C3500 4.1L/ 4.8L

For 1978-1979 GMC Caballero 3.3L/ 3.8L/ 5.0L/ 5.7L

For 1975-1978 GMC G15 4.1L

For 1972-1974 GMC G15/G1500 Van 4.1L

For 1979-1980 GMC G1500 4.1L/ 5.0L

For 1975-1978 GMC G25 4.1L/ 4.8L

For 1972-1974 GMC G25/G2500 Van 4.1L

For 1979-1980 GMC G2500 4.1L/ 5.0L

For 1975-1978 GMC G35 4.1L/ 4.8L

For 1972-1974 GMC G35/G3500 Van 4.1L

For 1979 GMC G3500 4.1L

For 1973-1980 GMC Jimmy 4.1L/ 4.8L/ 5.0L/ 5.7L

For 1975-1978 GMC K15 4.1L/ 4.8L

For 1976-1978 GMC K15 Suburban 5.0L/ 5.7L

For 1973-1974 GMC K15/K1500 Pikcup 4.1L

For 1979 GMC K1500 4.1L

For 1979 GMC K1500/ K2500/ K3500 4.8L

For 1979-1980 GMC K1500 Suburban 5.0L

For 1979-1980 GMC K1500 Suburban 5.7L

For 1975-1978 GMC K25 4.1L

For 1975-1978 GMC K25 4.8L

For 1976-1978 GMC K25 Suburban 5.0L

For 1976-1978 GMC K25 Suburban 5.7L

For 1973-1974 GMC K25/K2500 Pickup 4.1L/ 4.8L

For 1979-1980 GMC K2500 Suburban 5.7L

For 1977-1978 GMC K35 4.8L

For 1973-1974 GMC K35/K3500 Pickup 4.1L/ 4.8L

For Oldsmobile Radiator

For 1977-1980 Oldsmobile 98 5.7L

For 1978-1987 Oldsmobile Cutlass 3.8L/ 4.3L/ 4.4L/ 5.0L/ 5.7L

For 1978-1984 Oldsmobile Cutlass Calais 3.8L/ 4.3L/ 4.4L/ 5.0L/ 5.7L

For 1980-1983 Oldsmobile Cutlass Cruiser 4.3L/ 4.4L/ 5.0L/ 5.7L

For 1985-1987 Oldsmobile Cutlass Salon 3.8L/ 5.0L/ 5.7L

For 1978-1988 Oldsmobile Cutlass Supreme 3.8L/ 4.3L/ 4.4L/ 5.0L/ 5.7L

For 1975-1979 Oldsmobile Omega 3.8L/ 4.1L/ 5.0L/ 5.7L

For 1980 Oldsmobile Delta 88 4.3L

For Pontiac Radiator

For 1980-1986 Pontiac Bonneville 3.8L/ 4.3L/ 5.0L

For 1980-1981 Pontiac Catalina 3.8L/ 4.3L

For 1978-1980 Pontiac Grand Am 3.8L/ 4.9L/ 5.0L

For 1975-1980 Pontiac Grand LeMans 3.8L/ 4.1L/ 4.3L/ 4.9L/ 5.0L/ 5.7L/ 6.6L/ 7.5L

For 1978-1987 Pontiac Grand Prix 3.8L/ 4.3L/ 4.4L/ 4.9L/ 5.0L/ 5.7L

For 1978-1981 Pontiac LeMans L

For 1978-1981 Pontiac LeMans 3.8L/ 4.3L/ 4.4L/ 4.9L/ 5.0L/ 5.7L

For 1984-1986 Pontiac Parisienne 5.0L

For 1978-1979 Pontiac Phoenix 3.8L/ 5.0L

For 1975-1977 Pontiac Ventura 3.8L/ 4.1L/ 4.9L/ 5.7L

For Cadillac Radiator

For 1976-1979 Cadillac Seville 5.7L

Radiator Details:

Radiator style: Crossflow

Fitment Type: Direct Replacement

Placement on Vehicle: Engine Compartment

Radiator Drain Plug: OEM Style Brass Petcock Drain

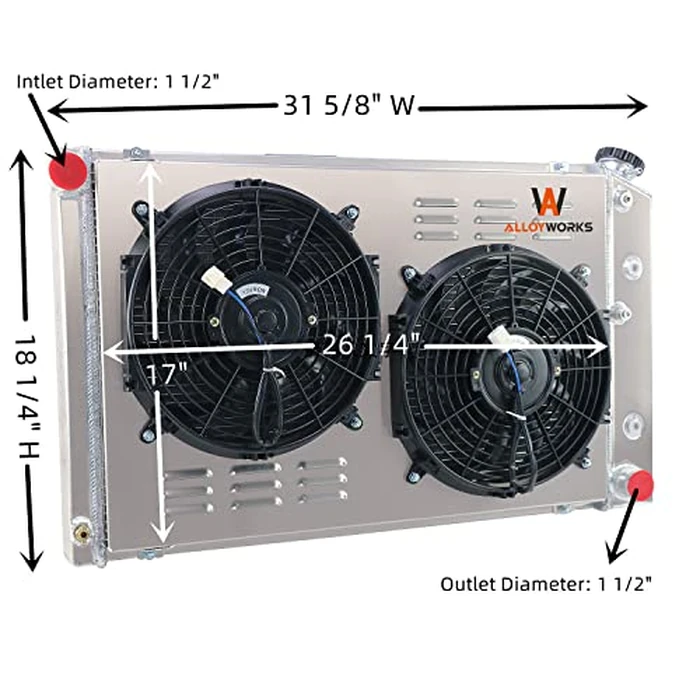

Core Dimensions:17"H x 26 1/4"W

Overall Dimensions:18 1/4"H x 31 5/8"W

Inlet Diameter:1-1/2"

Outlet Diameter:1-4/7"

Trans Cooler Included: φ32*215*G1/4（Z)

Mount Type: Saddle

FAN Specification:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Gentle Hint:

Pls compare the overall width with your original radiator.

Warranty: 1 Year Warranty against manufacture defect and damage in transit.

Professional installation is highly recommended! No Fitting Instructions Supplied!
