5pcs RFID Kit Mifare RC522 RFID Reader Module with S50 White Card and Key Ring for Arduino Raspberry Pi — Open-Box, 40% Off

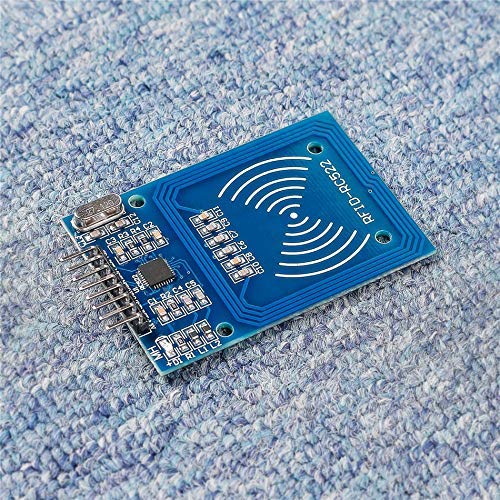

RFID-RC522 module is based on the Philips MF522-AN board and is delivered together with an S50 card, key Ring and two matching pin strips. Applicable for the user who need to design or manufacture the RF card terminal. Module Interface: SPI， Data transfer rate: Maximum 10Mbit/s. Power Voltage : 3.3V,Operating frequency: 13.56MHz. This module can be loaded directly into a variety of readers molds.

About RC522 chip

- MFRC522 is a highly integrated read and write chip which is applicable to 13.56MHz contactless communications.

- It is a non-contact read and writer card chip, low voltage, low cost and small size, is a better choice for smart meters and portable handheld devices development.

- MF RC522 completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.

- Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products.

- MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.

- As a highly integrated 13.56MHz card reader new family of chips, there are many similarities between MF RC522, MF RC500 and MF RC530, but also have many differences. Communication between it and the host SPI mode helps to reduce the connection, reduce PCB board size and cost.

Item Specifications:

Operating current :13-26mA/DC 3.3V

Idle current :10-13mA/DC 3.3V

Sleep current: <80uA

Peak current: <30mA

Operating Frequency: 13.56MHz

Read Range: 0 ~ 35mm (mifare1 card)

Size: 40mm×60mm

Module interfaces SPI: Data transfer rate maximum 10Mbit/s

Package Included:

5 * RFID-RC522 Module

5 x S50 Blank IC Card

5 x S50 Key Ring

10 * Pin Headers
